Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fixingTime
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:BusinessCenterTime
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The time at which the fx spot rate observation is made i.e. the option cut off time on the expiry date. Also known as "valuation time".

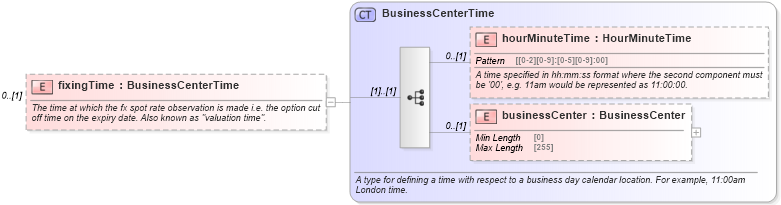

Collapse XSD Schema Diagram:
Drilldown into businessCenter in schema fpml-shared-5-10_xsd4 Drilldown into hourMinuteTime in schema fpml-shared-5-10_xsd4 Drilldown into BusinessCenterTime in schema fpml-shared-5-10_xsd4XSD Diagram of fixingTime in schema fpml-fx-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fixingTime" type="BusinessCenterTime" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The time at which the fx spot rate observation is made i.e. the option cut off time on the expiry date. Also known as "valuation time".</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
hourMinuteTime nsE:hourMinuteTime 0 (1)
businessCenter nsE:businessCenter 0 (1)
Collapse Derivation Tree:
