Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FloatingAmountCalculation
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-cd-5-10.xsd
Abstract

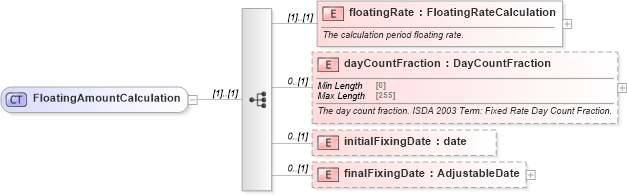

Collapse XSD Schema Diagram:
Drilldown into finalFixingDate in schema fpml-cd-5-10_xsd4 Drilldown into initialFixingDate in schema fpml-cd-5-10_xsd4 Drilldown into dayCountFraction in schema fpml-cd-5-10_xsd4 Drilldown into floatingRate in schema fpml-cd-5-10_xsd4XSD Diagram of FloatingAmountCalculation in schema fpml-cd-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FloatingAmountCalculation">
    <xsd:sequence>
        <xsd:element name="floatingRate" type="FloatingRateCalculation">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The calculation period floating rate.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dayCountFraction" type="DayCountFraction" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The day count fraction. ISDA 2003 Term: Fixed Rate Day Count Fraction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="initialFixingDate" type="xsd:date" minOccurs="0" />
        <xsd:element name="finalFixingDate" type="AdjustableDate" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRate nsF:floatingRate (1) (1)
dayCountFraction nsF:dayCountFraction 0 (1)
initialFixingDate nsF:initialFixingDate 0 (1)
finalFixingDate nsF:finalFixingDate 0 (1)
Collapse Derivation Tree:
Collapse References:
nsF:floatingAmountCalculation
