Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: floatingLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxPerformanceFloatingLeg
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Floating FX Rate component describes the Floating FX Rate Payer of the rate determined in accordance with the Floating FX Rate Option specified in the Definitions.

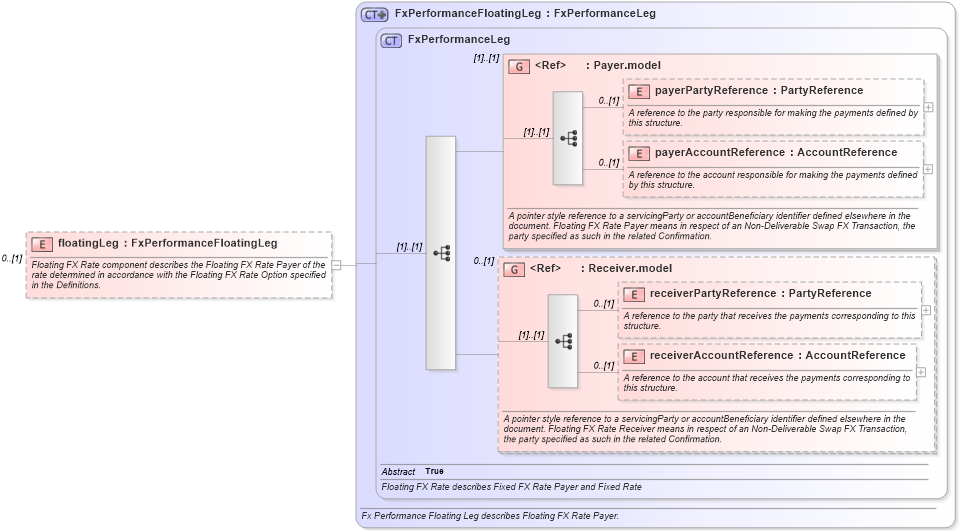

Collapse XSD Schema Diagram:
Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into FxPerformanceLeg in schema fpml-fx-5-10_xsd3 Drilldown into FxPerformanceFloatingLeg in schema fpml-fx-5-10_xsd3XSD Diagram of floatingLeg in schema fpml-fx-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="floatingLeg" type="FxPerformanceFloatingLeg" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Floating FX Rate component describes the Floating FX Rate Payer of the rate determined in accordance with the Floating FX Rate Option specified in the Definitions.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model 0 (1)
Collapse Derivation Tree:
