Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FloatingLegCalculation
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
A type to capture details relevant to the calculation of the floating price.

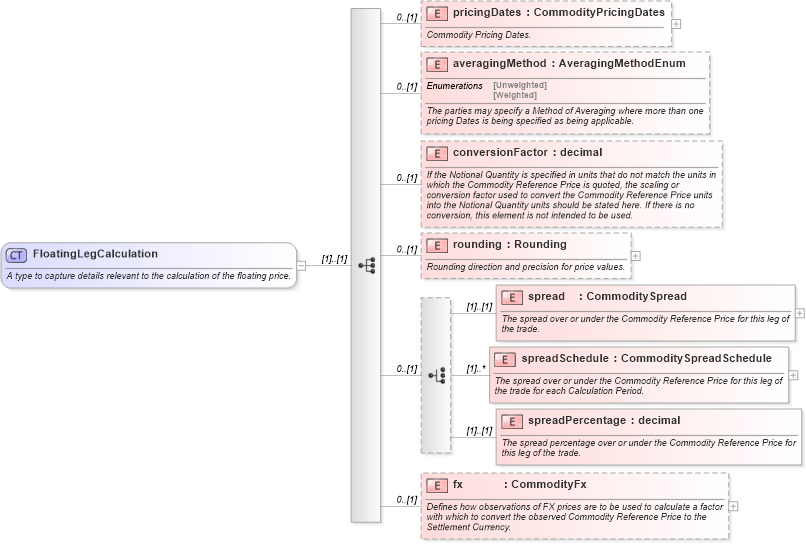

Collapse XSD Schema Diagram:
Drilldown into fx in schema fpml-com-5-10_xsd2 Drilldown into spreadPercentage in schema fpml-com-5-10_xsd2 Drilldown into spreadSchedule in schema fpml-com-5-10_xsd2 Drilldown into spread in schema fpml-com-5-10_xsd2 Drilldown into rounding in schema fpml-com-5-10_xsd2 Drilldown into conversionFactor in schema fpml-com-5-10_xsd2 Drilldown into averagingMethod in schema fpml-com-5-10_xsd2 Drilldown into pricingDates in schema fpml-com-5-10_xsd2XSD Diagram of FloatingLegCalculation in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FloatingLegCalculation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type to capture details relevant to the calculation of the floating price.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="pricingDates" type="CommodityPricingDates" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Commodity Pricing Dates.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="averagingMethod" type="AveragingMethodEnum" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The parties may specify a Method of Averaging where more than one pricing Dates is being specified as being applicable.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="conversionFactor" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">If the Notional Quantity is specified in units that do not match the units in which the Commodity Reference Price is quoted, the scaling or conversion factor used to convert the Commodity Reference Price units into the Notional Quantity units should be stated here. If there is no conversion, this element is not intended to be used.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="rounding" type="Rounding" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Rounding direction and precision for price values.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0">
            <xsd:element name="spread" type="CommoditySpread">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The spread over or under the Commodity Reference Price for this leg of the trade.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="spreadSchedule" type="CommoditySpreadSchedule" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The spread over or under the Commodity Reference Price for this leg of the trade for each Calculation Period.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="spreadPercentage" type="xsd:decimal">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The spread percentage over or under the Commodity Reference Price for this leg of the trade.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="fx" type="CommodityFx" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Defines how observations of FX prices are to be used to calculate a factor with which to convert the observed Commodity Reference Price to the Settlement Currency.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pricingDates nsE:pricingDates 0 (1)
averagingMethod nsE:averagingMethod 0 (1)
conversionFactor nsE:conversionFactor 0 (1)
rounding nsE:rounding 0 (1)
spread nsE:spread (1) (1)
spreadSchedule nsE:spreadSchedule (1) unbounded
spreadPercentage nsE:spreadPercentage (1) (1)
fx nsE:fx 0 (1)
Collapse Derivation Tree:
Collapse References:
nsE:calculation, nsE:calculation, nsE:FloatingStrikePrice
