Definition Type: ComplexType
Name: FloatingRateCalculation
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FloatingRate
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type defining the floating rate and definitions relating to the calculation of floating rate amounts.
Collapse XSD Schema Diagram:

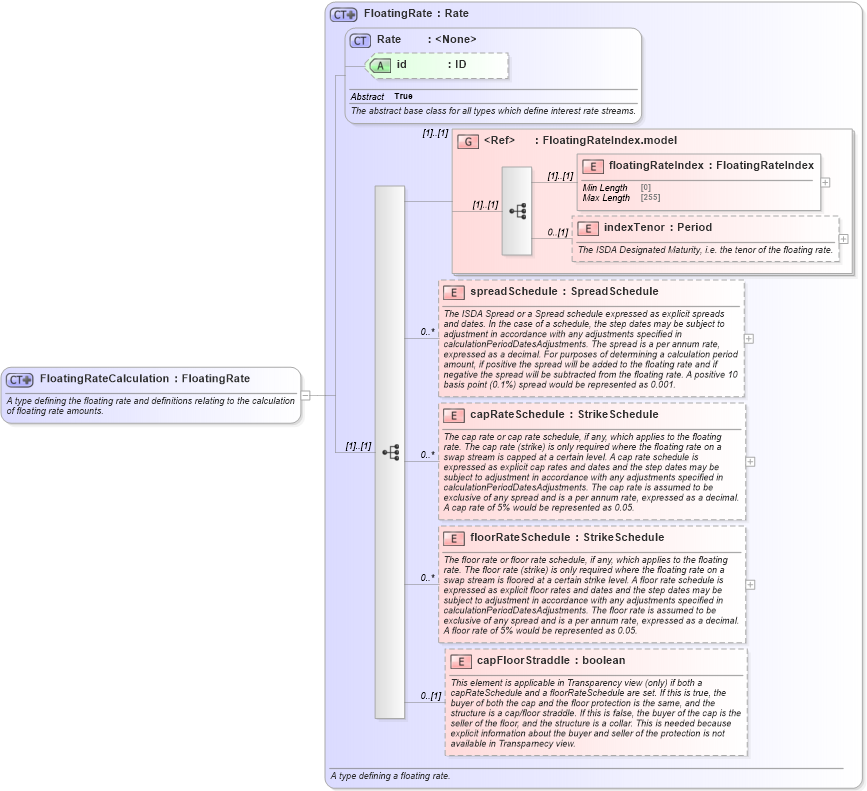

Drilldown into capFloorStraddle in schema fpml-shared-5-10_xsd5 Drilldown into floorRateSchedule in schema fpml-shared-5-10_xsd5 Drilldown into capRateSchedule in schema fpml-shared-5-10_xsd5 Drilldown into spreadSchedule in schema fpml-shared-5-10_xsd5 Drilldown into indexTenor in schema fpml-shared-5-10_xsd5 Drilldown into floatingRateIndex in schema fpml-shared-5-10_xsd5 Drilldown into FloatingRateIndex.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Rate in schema fpml-shared-5-10_xsd5 Drilldown into FloatingRate in schema fpml-shared-5-10_xsd5XSD Diagram of FloatingRateCalculation in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FloatingRateCalculation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the floating rate and definitions relating to the calculation of floating rate amounts.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FloatingRate">
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRateIndex nsF:floatingRateIndex (1) (1)
indexTenor nsF:indexTenor 0 (1)
spreadSchedule nsF:spreadSchedule 0 unbounded
capRateSchedule nsF:capRateSchedule 0 unbounded
floorRateSchedule nsF:floorRateSchedule 0 unbounded
capFloorStraddle nsF:capFloorStraddle 0 (1)
<xs:group> nsF:FloatingRateIndex.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:floatingRate, nsF:floatingRateCalculation, nsF:floatingRateCalculationnsF:InflationRateCalculation,
