Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: future
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:Future
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
Identifies the underlying asset when it is a listed future contract.

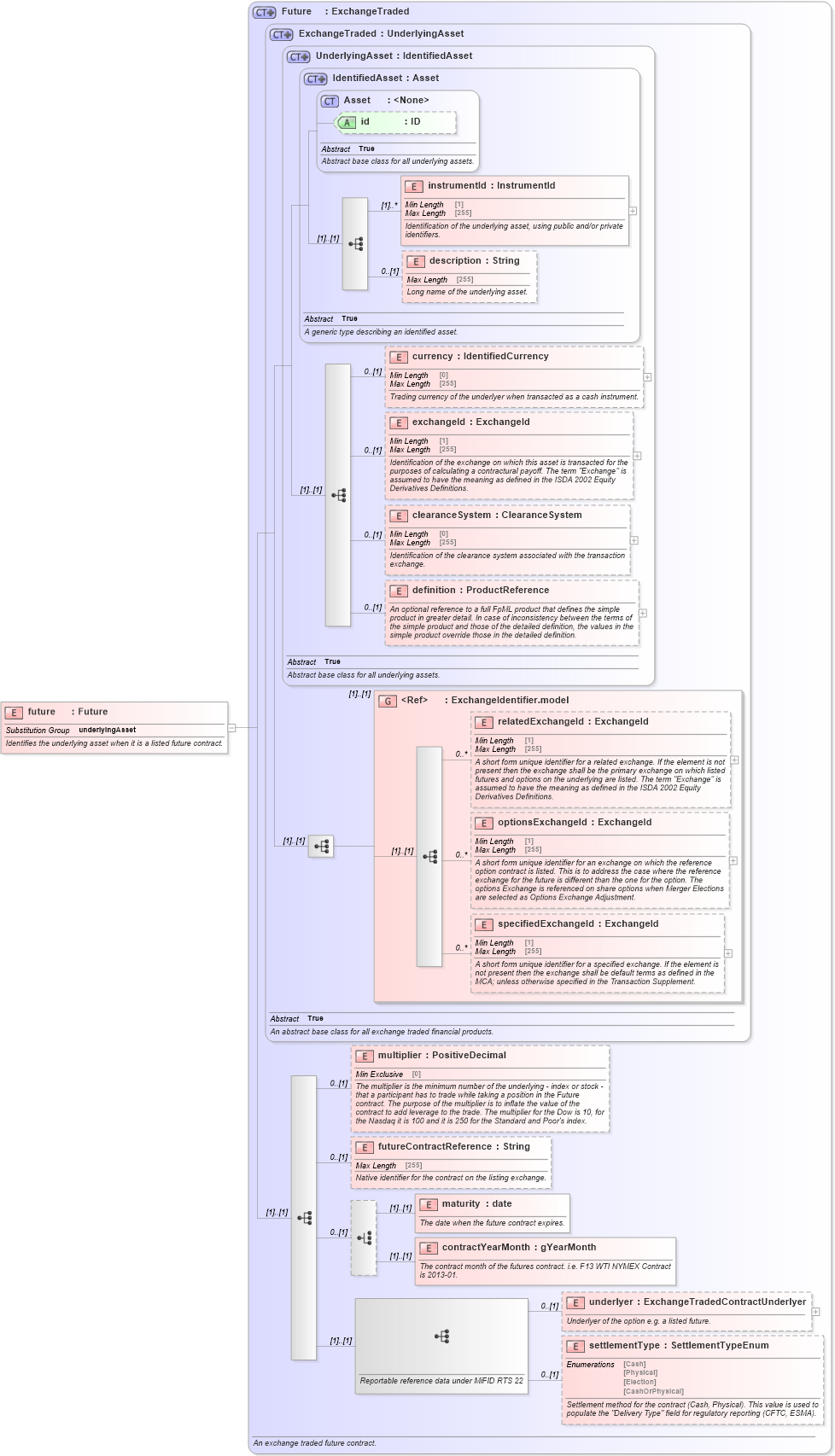

Collapse XSD Schema Diagram:
Drilldown into settlementType in schema fpml-asset-5-10_xsd Drilldown into underlyer in schema fpml-asset-5-10_xsd Drilldown into contractYearMonth in schema fpml-asset-5-10_xsd Drilldown into maturity in schema fpml-asset-5-10_xsd Drilldown into futureContractReference in schema fpml-asset-5-10_xsd Drilldown into multiplier in schema fpml-asset-5-10_xsd Drilldown into specifiedExchangeId in schema fpml-asset-5-10_xsd Drilldown into optionsExchangeId in schema fpml-asset-5-10_xsd Drilldown into relatedExchangeId in schema fpml-asset-5-10_xsd Drilldown into ExchangeIdentifier.model in schema fpml-asset-5-10_xsd Drilldown into definition in schema fpml-asset-5-10_xsd Drilldown into clearanceSystem in schema fpml-asset-5-10_xsd Drilldown into exchangeId in schema fpml-asset-5-10_xsd Drilldown into currency in schema fpml-asset-5-10_xsd Drilldown into description in schema fpml-asset-5-10_xsd Drilldown into instrumentId in schema fpml-asset-5-10_xsd Drilldown into id in schema fpml-asset-5-10_xsd Drilldown into Asset in schema fpml-asset-5-10_xsd Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd Drilldown into UnderlyingAsset in schema fpml-asset-5-10_xsd Drilldown into ExchangeTraded in schema fpml-asset-5-10_xsd Drilldown into Future in schema fpml-asset-5-10_xsdXSD Diagram of future in schema fpml-asset-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="future" type="Future" substitutionGroup="underlyingAsset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identifies the underlying asset when it is a listed future contract.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
currency nsA:currency 0 (1)
exchangeId nsA:exchangeId 0 (1)
clearanceSystem nsA:clearanceSystem 0 (1)
definition nsA:definition 0 (1)
relatedExchangeId nsA:relatedExchangeId 0 unbounded
optionsExchangeId nsA:optionsExchangeId 0 unbounded
specifiedExchangeId nsA:specifiedExchangeId 0 unbounded
multiplier nsA:multiplier 0 (1)
futureContractReference nsA:futureContractReference 0 (1)
maturity nsA:maturity (1) (1)
contractYearMonth nsA:contractYearMonth (1) (1)
underlyer nsA:underlyer 0 (1)
settlementType nsA:settlementType 0 (1)
<xs:group> nsA:ExchangeIdentifier.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:underlyingAsset
