Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: future
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Future
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
Identifies the underlying asset when it is a listed future contract.

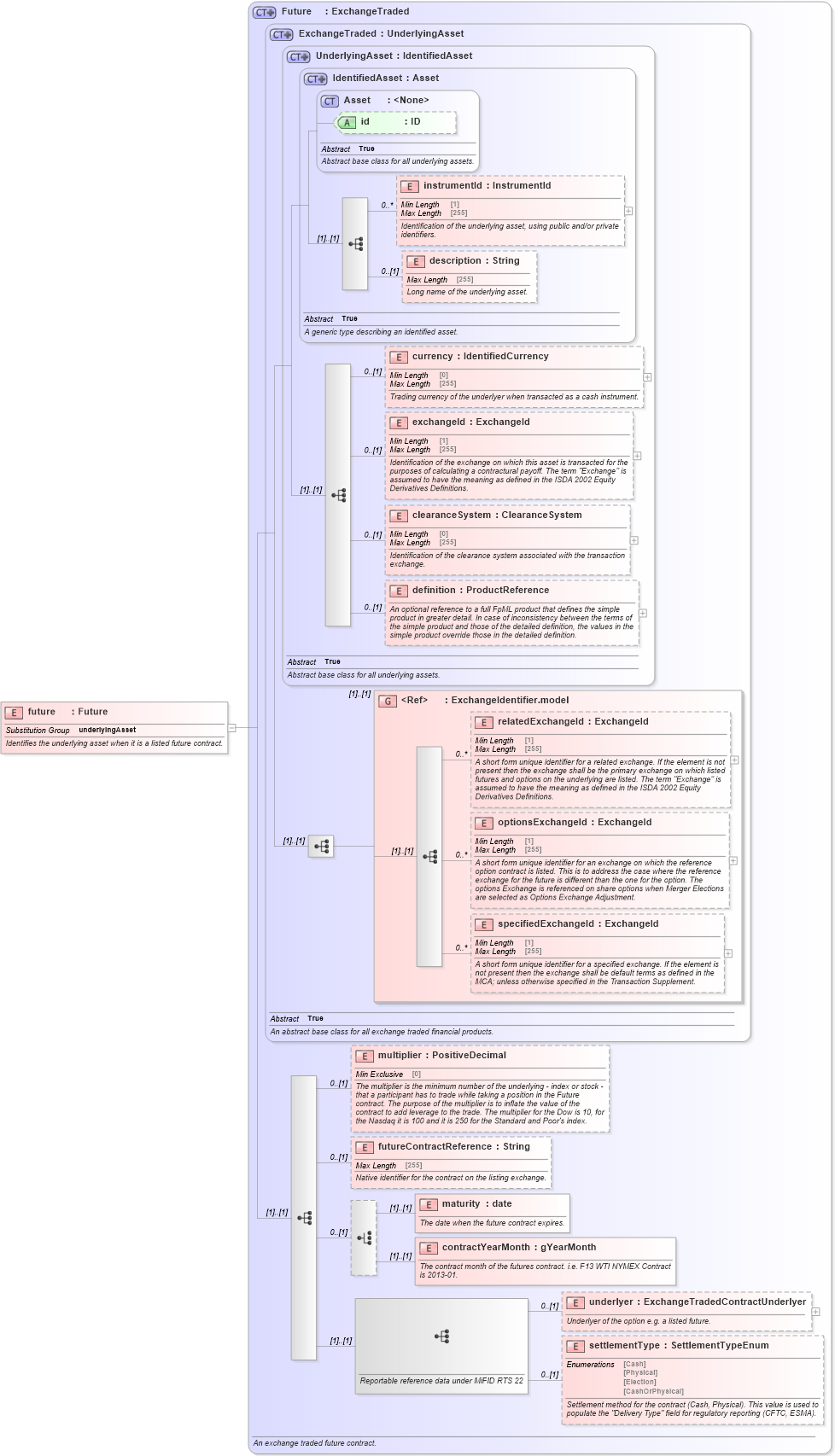

Collapse XSD Schema Diagram:
Drilldown into settlementType in schema fpml-asset-5-10_xsd4 Drilldown into underlyer in schema fpml-asset-5-10_xsd4 Drilldown into contractYearMonth in schema fpml-asset-5-10_xsd4 Drilldown into maturity in schema fpml-asset-5-10_xsd4 Drilldown into futureContractReference in schema fpml-asset-5-10_xsd4 Drilldown into multiplier in schema fpml-asset-5-10_xsd4 Drilldown into specifiedExchangeId in schema fpml-asset-5-10_xsd4 Drilldown into optionsExchangeId in schema fpml-asset-5-10_xsd4 Drilldown into relatedExchangeId in schema fpml-asset-5-10_xsd4 Drilldown into ExchangeIdentifier.model in schema fpml-asset-5-10_xsd4 Drilldown into definition in schema fpml-asset-5-10_xsd4 Drilldown into clearanceSystem in schema fpml-asset-5-10_xsd4 Drilldown into exchangeId in schema fpml-asset-5-10_xsd4 Drilldown into currency in schema fpml-asset-5-10_xsd4 Drilldown into description in schema fpml-asset-5-10_xsd4 Drilldown into instrumentId in schema fpml-asset-5-10_xsd4 Drilldown into id in schema fpml-asset-5-10_xsd4 Drilldown into Asset in schema fpml-asset-5-10_xsd4 Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd4 Drilldown into UnderlyingAsset in schema fpml-asset-5-10_xsd4 Drilldown into ExchangeTraded in schema fpml-asset-5-10_xsd4 Drilldown into Future in schema fpml-asset-5-10_xsd4XSD Diagram of future in schema fpml-asset-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="future" type="Future" substitutionGroup="underlyingAsset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identifies the underlying asset when it is a listed future contract.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsE:instrumentId 0 unbounded
description nsE:description 0 (1)
currency nsE:currency 0 (1)
exchangeId nsE:exchangeId 0 (1)
clearanceSystem nsE:clearanceSystem 0 (1)
definition nsE:definition 0 (1)
relatedExchangeId nsE:relatedExchangeId 0 unbounded
optionsExchangeId nsE:optionsExchangeId 0 unbounded
specifiedExchangeId nsE:specifiedExchangeId 0 unbounded
multiplier nsE:multiplier 0 (1)
futureContractReference nsE:futureContractReference 0 (1)
maturity nsE:maturity (1) (1)
contractYearMonth nsE:contractYearMonth (1) (1)
underlyer nsE:underlyer 0 (1)
settlementType nsE:settlementType 0 (1)
<xs:group> nsE:ExchangeIdentifier.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:underlyingAsset
