Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FutureValueAmount
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:NonNegativeMoney
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type defining a currency amount as at a future value date. - For use with pre-trade Credit Limit Check messages.

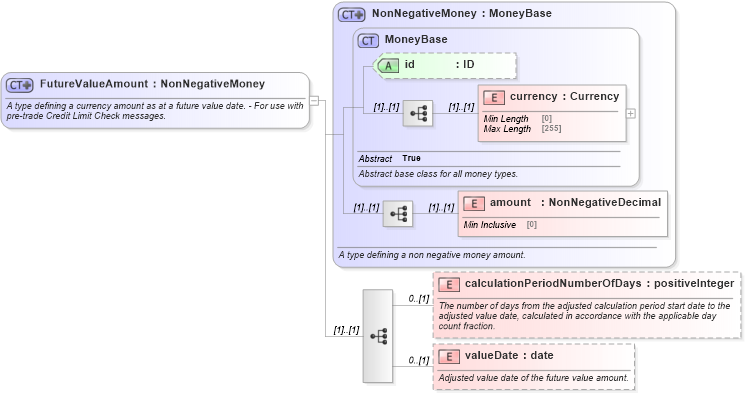

Collapse XSD Schema Diagram:
Drilldown into valueDate in schema fpml-shared-5-10_xsd2 Drilldown into calculationPeriodNumberOfDays in schema fpml-shared-5-10_xsd2 Drilldown into amount in schema fpml-shared-5-10_xsd2 Drilldown into currency in schema fpml-shared-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd2 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd2 Drilldown into NonNegativeMoney in schema fpml-shared-5-10_xsd2XSD Diagram of FutureValueAmount in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FutureValueAmount">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a currency amount as at a future value date. - For use with pre-trade Credit Limit Check messages.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NonNegativeMoney">
            <xsd:sequence>
                <xsd:element name="calculationPeriodNumberOfDays" type="xsd:positiveInteger" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The number of days from the adjusted calculation period start date to the adjusted value date, calculated in accordance with the applicable day count fraction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="valueDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Adjusted value date of the future value amount.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsC:currency (1) (1)
amount nsC:amount (1) (1)
calculationPeriodNumberOfDays nsC:calculationPeriodNumberOfDays 0 (1)
valueDate nsC:valueDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:futureValueNotional
