Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxAccrualRegionUpperBound
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-fx-accruals-5-10.xsd
Abstract

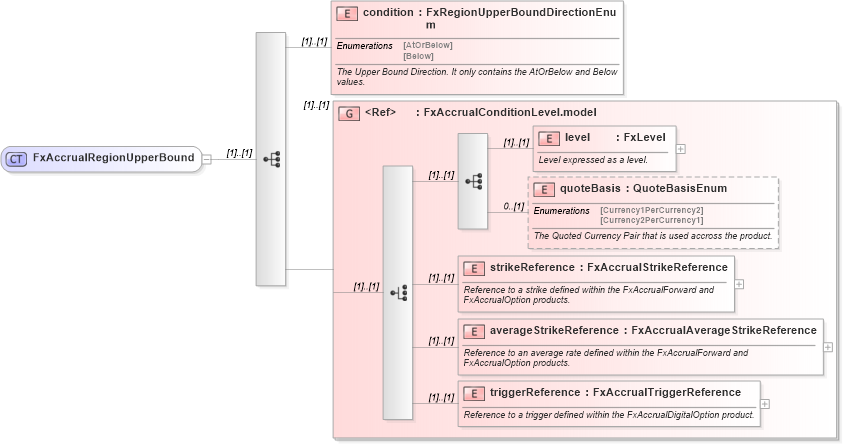

Collapse XSD Schema Diagram:
Drilldown into triggerReference in schema fpml-fx-accruals-5-10_xsd Drilldown into averageStrikeReference in schema fpml-fx-accruals-5-10_xsd Drilldown into strikeReference in schema fpml-fx-accruals-5-10_xsd Drilldown into quoteBasis in schema fpml-fx-accruals-5-10_xsd Drilldown into level in schema fpml-fx-accruals-5-10_xsd Drilldown into FxAccrualConditionLevel.model in schema fpml-fx-accruals-5-10_xsd Drilldown into condition in schema fpml-fx-accruals-5-10_xsdXSD Diagram of FxAccrualRegionUpperBound in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxAccrualRegionUpperBound">
    <xsd:sequence>
        <xsd:element name="condition" type="FxRegionUpperBoundDirectionEnum">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The Upper Bound Direction. It only contains the AtOrBelow and Below values.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="FxAccrualConditionLevel.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
condition nsA:condition (1) (1)
level nsA:level (1) (1)
quoteBasis nsA:quoteBasis 0 (1)
strikeReference nsA:strikeReference (1) (1)
averageStrikeReference nsA:averageStrikeReference (1) (1)
triggerReference nsA:triggerReference (1) (1)
<xs:group> nsA:FxAccrualConditionLevel.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:upperBound, nsA:upperBound
