Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxAccrualRegionUpperBound
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-fx-accruals-5-10.xsd
Abstract

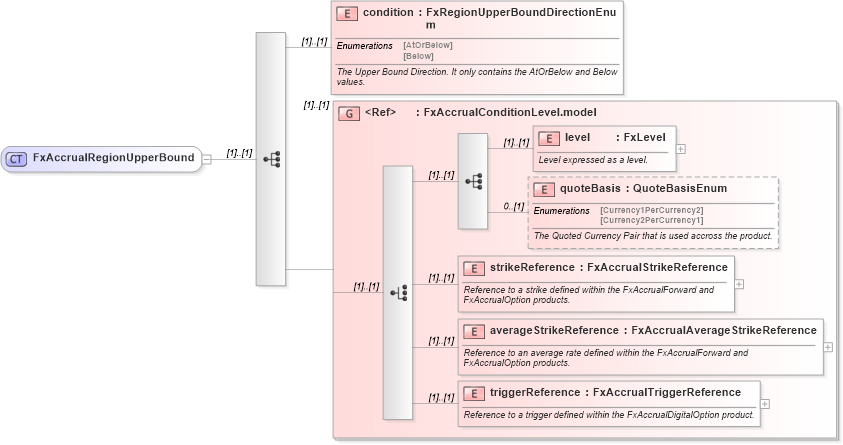

Collapse XSD Schema Diagram:
Drilldown into triggerReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into averageStrikeReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into strikeReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into quoteBasis in schema fpml-fx-accruals-5-10_xsd1 Drilldown into level in schema fpml-fx-accruals-5-10_xsd1 Drilldown into FxAccrualConditionLevel.model in schema fpml-fx-accruals-5-10_xsd1 Drilldown into condition in schema fpml-fx-accruals-5-10_xsd1XSD Diagram of FxAccrualRegionUpperBound in schema fpml-fx-accruals-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxAccrualRegionUpperBound">
    <xsd:sequence>
        <xsd:element name="condition" type="FxRegionUpperBoundDirectionEnum">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The Upper Bound Direction. It only contains the AtOrBelow and Below values.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="FxAccrualConditionLevel.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
condition nsD:condition (1) (1)
level nsD:level (1) (1)
quoteBasis nsD:quoteBasis 0 (1)
strikeReference nsD:strikeReference (1) (1)
averageStrikeReference nsD:averageStrikeReference (1) (1)
triggerReference nsD:triggerReference (1) (1)
<xs:group> nsD:FxAccrualConditionLevel.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsD:upperBound, nsD:upperBound
