Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxAverageStrike
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxAveragingProcess
Containing Schema: fpml-fx-accruals-5-10.xsd
Abstract

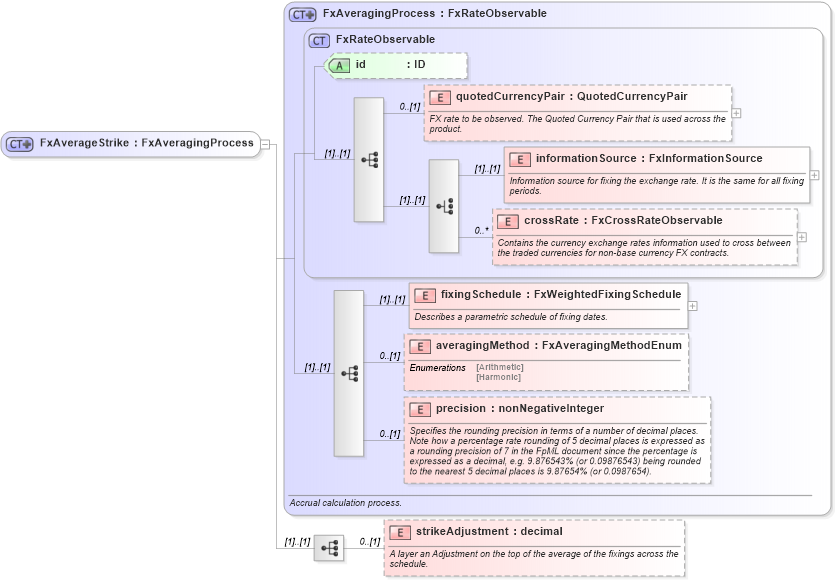

Collapse XSD Schema Diagram:
Drilldown into strikeAdjustment in schema fpml-fx-accruals-5-10_xsd2 Drilldown into precision in schema fpml-fx-accruals-5-10_xsd2 Drilldown into averagingMethod in schema fpml-fx-accruals-5-10_xsd2 Drilldown into fixingSchedule in schema fpml-fx-accruals-5-10_xsd2 Drilldown into crossRate in schema fpml-fx-accruals-5-10_xsd2 Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd2 Drilldown into quotedCurrencyPair in schema fpml-fx-accruals-5-10_xsd2 Drilldown into id in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxRateObservable in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAveragingProcess in schema fpml-fx-accruals-5-10_xsd2XSD Diagram of FxAverageStrike in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxAverageStrike">
    <xsd:complexContent>
        <xsd:extension base="FxAveragingProcess">
            <xsd:sequence>
                <xsd:element name="strikeAdjustment" type="xsd:decimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A layer an Adjustment on the top of the average of the fixings across the schedule.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quotedCurrencyPair nsE:quotedCurrencyPair 0 (1)
informationSource nsE:informationSource (1) (1)
crossRate nsE:crossRate 0 unbounded
fixingSchedule nsE:fixingSchedule (1) (1)
averagingMethod nsE:averagingMethod 0 (1)
precision nsE:precision 0 (1)
strikeAdjustment nsE:strikeAdjustment 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:averageStrike, nsE:averageStrike
