Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxCounterCurrencyAmount
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:NonNegativeAmountSchedule
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract

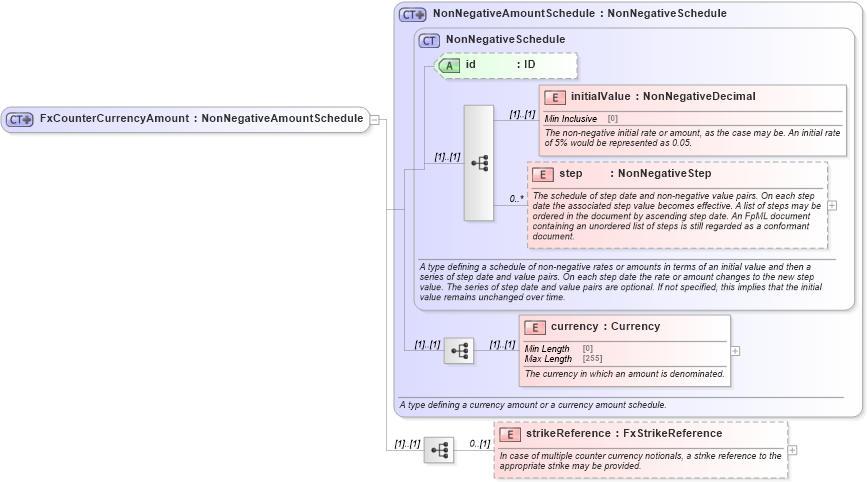

Collapse XSD Schema Diagram:
Drilldown into strikeReference in schema fpml-fx-targets-5-10_xsd1 Drilldown into currency in schema fpml-shared-5-10_xsd3 Drilldown into step in schema fpml-shared-5-10_xsd3 Drilldown into initialValue in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd3 Drilldown into NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd3XSD Diagram of FxCounterCurrencyAmount in schema fpml-fx-targets-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxCounterCurrencyAmount">
    <xsd:complexContent>
        <xsd:extension base="NonNegativeAmountSchedule">
            <xsd:sequence>
                <xsd:element name="strikeReference" type="FxStrikeReference" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">In case of multiple counter currency notionals, a strike reference to the appropriate strike may be provided.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsD:initialValue (1) (1)
step nsD:step 0 unbounded
currency nsD:currency (1) (1)
strikeReference nsD:strikeReference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:counterCurrencyAmount, nsD:counterCurrencyAmountnsD:counterCurrencyAmount,
