Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxDigitalAmericanExercise
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:Exercise
Containing Schema: fpml-fx-5-10.xsd
Abstract
Documentation:
Descrines the characteristics for American exercise in FX digital options.

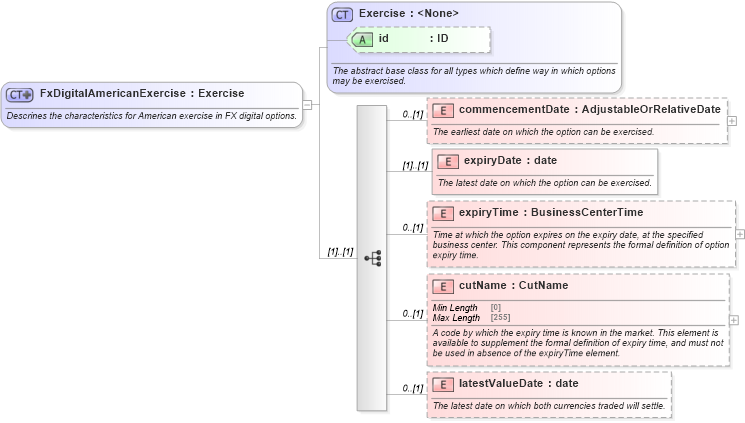

Collapse XSD Schema Diagram:
Drilldown into latestValueDate in schema fpml-fx-5-10_xsd1 Drilldown into cutName in schema fpml-fx-5-10_xsd1 Drilldown into expiryTime in schema fpml-fx-5-10_xsd1 Drilldown into expiryDate in schema fpml-fx-5-10_xsd1 Drilldown into commencementDate in schema fpml-fx-5-10_xsd1 Drilldown into id in schema fpml-shared-5-10_xsd2 Drilldown into Exercise in schema fpml-shared-5-10_xsd2XSD Diagram of FxDigitalAmericanExercise in schema fpml-fx-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxDigitalAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Descrines the characteristics for American exercise in FX digital options.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Exercise">
            <xsd:sequence>
                <xsd:element name="commencementDate" type="AdjustableOrRelativeDate" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The earliest date on which the option can be exercised.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryDate" type="xsd:date">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The latest date on which the option can be exercised.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryTime" type="BusinessCenterTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Time at which the option expires on the expiry date, at the specified business center. This component represents the formal definition of option expiry time.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="cutName" type="CutName" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A code by which the expiry time is known in the market. This element is available to supplement the formal definition of expiry time, and must not be used in absence of the expiryTime element.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="latestValueDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The latest date on which both currencies traded will settle.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commencementDate nsC:commencementDate 0 (1)
expiryDate nsC:expiryDate (1) (1)
expiryTime nsC:expiryTime 0 (1)
cutName nsC:cutName 0 (1)
latestValueDate nsC:latestValueDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:americanExercisensC:FxAmericanExercise,
