Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxExchangedCurrency
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
Indicates the direction who pays and receives a specific currency without specifying the amount.

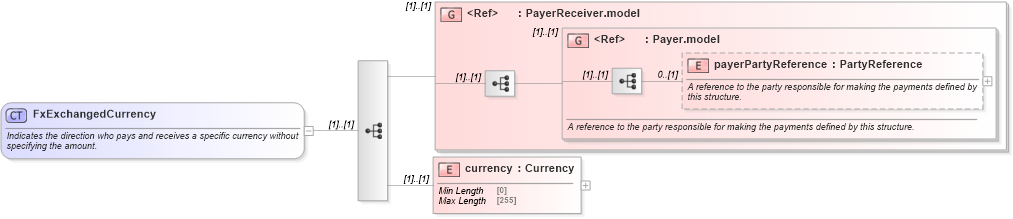

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-fx-targets-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into Payer.model in schema fpml-shared-5-10_xsd5 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd5XSD Diagram of FxExchangedCurrency in schema fpml-fx-targets-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxExchangedCurrency">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Indicates the direction who pays and receives a specific currency without specifying the amount.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PayerReceiver.model" />
        <xsd:element name="currency" type="Currency" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsF:payerPartyReference 0 (1)
currency nsF:currency (1) (1)
<xs:group> nsF:PayerReceiver.model (1) (1)
<xs:group> nsF:Payer.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsF:exchangedCurrency1, nsF:exchangedCurrency2
