Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxExpirySchedule
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxSchedule
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
Defines the expiry/observation schedule of the target.

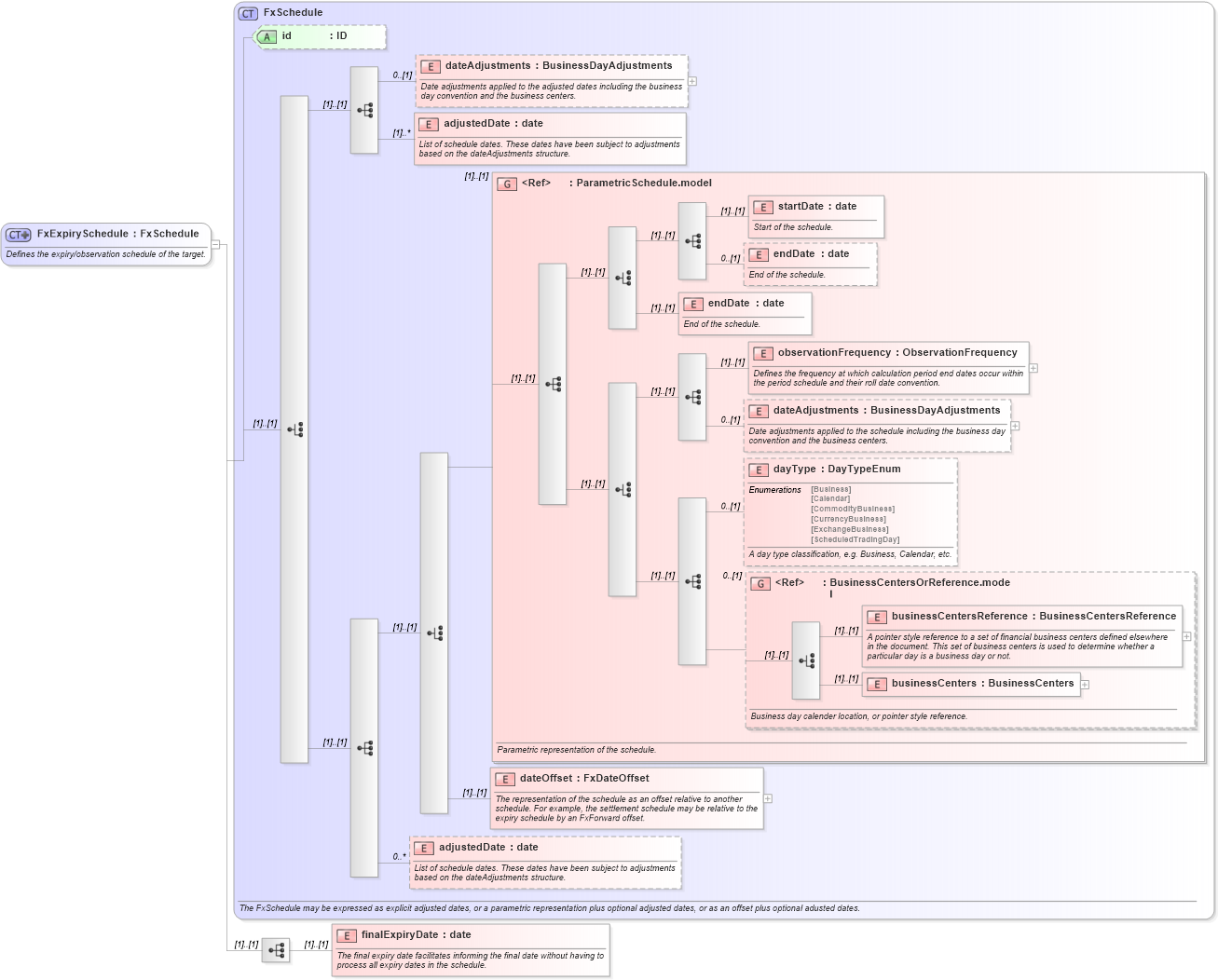

Collapse XSD Schema Diagram:
Drilldown into finalExpiryDate in schema fpml-fx-targets-5-10_xsd3 Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd3 Drilldown into dateOffset in schema fpml-fx-targets-5-10_xsd3 Drilldown into businessCenters in schema fpml-shared-5-10_xsd5 Drilldown into businessCentersReference in schema fpml-shared-5-10_xsd5 Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-10_xsd5 Drilldown into dayType in schema fpml-fx-targets-5-10_xsd3 Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd3 Drilldown into observationFrequency in schema fpml-fx-targets-5-10_xsd3 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd3 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd3 Drilldown into startDate in schema fpml-fx-targets-5-10_xsd3 Drilldown into ParametricSchedule.model in schema fpml-fx-targets-5-10_xsd3 Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd3 Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd3 Drilldown into id in schema fpml-fx-targets-5-10_xsd3 Drilldown into FxSchedule in schema fpml-fx-targets-5-10_xsd3XSD Diagram of FxExpirySchedule in schema fpml-fx-targets-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxExpirySchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the expiry/observation schedule of the target.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FxSchedule">
            <xsd:sequence>
                <xsd:element name="finalExpiryDate" type="xsd:date">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The final expiry date facilitates informing the final date without having to process all expiry dates in the schedule.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dateAdjustments nsF:dateAdjustments 0 (1)
adjustedDate nsF:adjustedDate (1) unbounded
startDate nsF:startDate (1) (1)
endDate nsF:endDate 0 (1)
endDate nsF:endDate (1) (1)
observationFrequency nsF:observationFrequency (1) (1)
dateAdjustments nsF:dateAdjustments 0 (1)
dayType nsF:dayType 0 (1)
businessCentersReference nsF:businessCentersReference (1) (1)
businessCenters nsF:businessCenters (1) (1)
dateOffset nsF:dateOffset (1) (1)
adjustedDate nsF:adjustedDate 0 unbounded
finalExpiryDate nsF:finalExpiryDate (1) (1)
<xs:group> nsF:ParametricSchedule.model (1) (1)
<xs:group> nsF:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:expirySchedule, nsF:expirySchedule
