<xsd:complexType name="FxFixing">
<xsd:annotation>
<xsd:documentation xml:lang="en">A type that specifies the source for and timing of a fixing of an exchange rate. This is used in the agreement of non-deliverable forward trades as well as various types of FX OTC options that require observations against a particular rate.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair">
<xsd:annotation>
<xsd:documentation xml:lang="en">Defines the two currencies for an FX trade and the quotation relationship between the two currencies.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="fixingDate" type="xsd:date" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Describes the specific date when a non-deliverable forward or cash-settled option will "fix" against a particular rate, which will be used to compute the ultimate cash settlement. This element should be omitted where a single, discrete fixing date cannot be identified e.g. on an american option, where fixing may occur at any date on a continuous range.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="fxSpotRateSource" type="FxSpotRateSource" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Specifies the methodology (reference source and, optionally, fixing time) to be used for determining a currency conversion rate.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

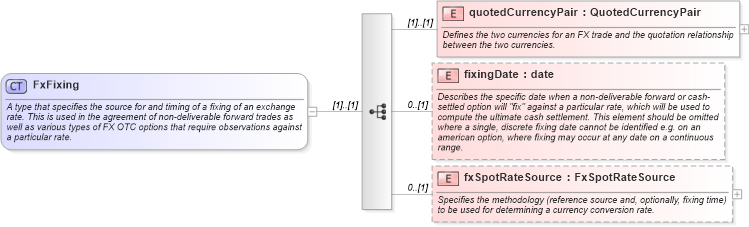

XSD Schema Diagram:
