Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxFixingSchedule
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:AdjustableDates
Containing Schema: fpml-ird-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The date, when expressed as a schedule of date(s), on which the currency rate will be determined for the purpose of specifying the amount in deliverable currency.

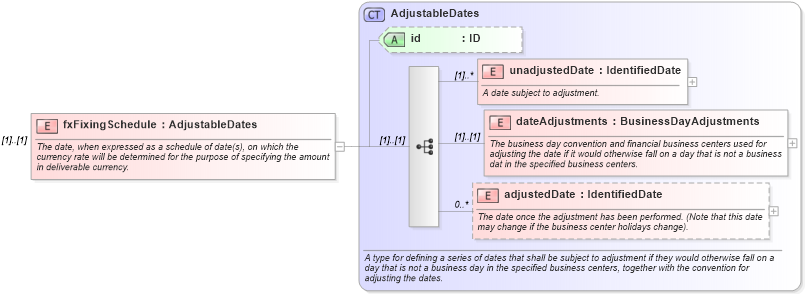

Collapse XSD Schema Diagram:
Drilldown into adjustedDate in schema fpml-shared-5-10_xsd Drilldown into dateAdjustments in schema fpml-shared-5-10_xsd Drilldown into unadjustedDate in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into AdjustableDates in schema fpml-shared-5-10_xsdXSD Diagram of fxFixingSchedule in schema fpml-ird-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxFixingSchedule" type="AdjustableDates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The date, when expressed as a schedule of date(s), on which the currency rate will be determined for the purpose of specifying the amount in deliverable currency.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsA:unadjustedDate (1) unbounded
dateAdjustments nsA:dateAdjustments (1) (1)
adjustedDate nsA:adjustedDate 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
Collapse Derivation Tree:
