Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxLinkedNotionalSchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxLinkedNotionalSchedule
Containing Schema: fpml-ird-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A notional amount schedule where each notional that applied to a calculation period is calculated with reference to a notional amount or notional amount schedule in a different currency by means of a spot currency exchange rate which is normally observed at the beginning of each period.

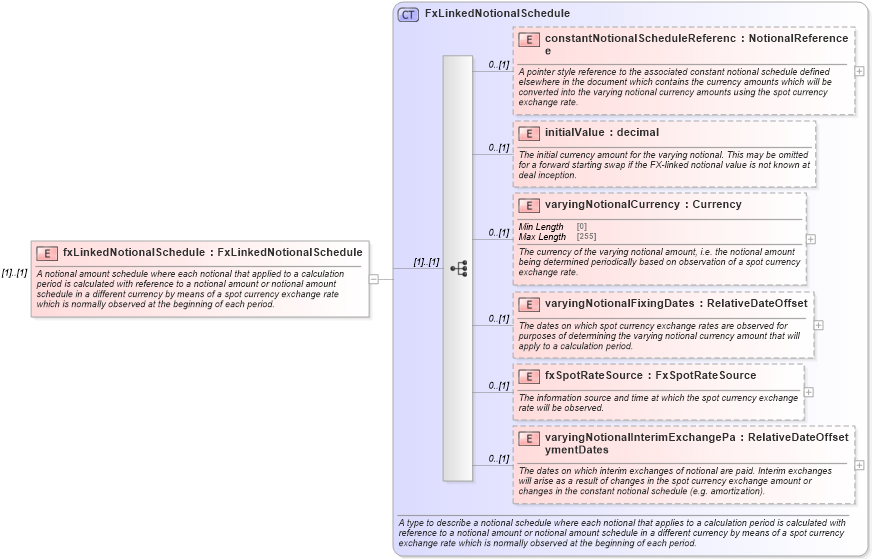

Collapse XSD Schema Diagram:
Drilldown into varyingNotionalInterimExchangePaymentDates in schema fpml-ird-5-10_xsd3 Drilldown into fxSpotRateSource in schema fpml-ird-5-10_xsd3 Drilldown into varyingNotionalFixingDates in schema fpml-ird-5-10_xsd3 Drilldown into varyingNotionalCurrency in schema fpml-ird-5-10_xsd3 Drilldown into initialValue in schema fpml-ird-5-10_xsd3 Drilldown into constantNotionalScheduleReference in schema fpml-ird-5-10_xsd3 Drilldown into FxLinkedNotionalSchedule in schema fpml-ird-5-10_xsd3XSD Diagram of fxLinkedNotionalSchedule in schema fpml-ird-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxLinkedNotionalSchedule" type="FxLinkedNotionalSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A notional amount schedule where each notional that applied to a calculation period is calculated with reference to a notional amount or notional amount schedule in a different currency by means of a spot currency exchange rate which is normally observed at the beginning of each period.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
constantNotionalScheduleReference nsE:constantNotionalScheduleReference 0 (1)
initialValue nsE:initialValue 0 (1)
varyingNotionalCurrency nsE:varyingNotionalCurrency 0 (1)
varyingNotionalFixingDates nsE:varyingNotionalFixingDates 0 (1)
fxSpotRateSource nsE:fxSpotRateSource 0 (1)
varyingNotionalInterimExchangePaymentDates nsE:varyingNotionalInterimExchangePaymentDates 0 (1)
Collapse Derivation Tree:
