Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxMultipleExercise
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-fx-5-10.xsd
Abstract
Documentation:
Describes the limits on the size of notional when multiple exercise is allowed.

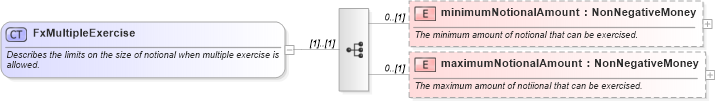

Collapse XSD Schema Diagram:
Drilldown into maximumNotionalAmount in schema fpml-fx-5-10_xsd2 Drilldown into minimumNotionalAmount in schema fpml-fx-5-10_xsd2XSD Diagram of FxMultipleExercise in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxMultipleExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes the limits on the size of notional when multiple exercise is allowed.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="minimumNotionalAmount" type="NonNegativeMoney" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The minimum amount of notional that can be exercised.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="maximumNotionalAmount" type="NonNegativeMoney" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The maximum amount of notiional that can be exercised.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
minimumNotionalAmount nsD:minimumNotionalAmount 0 (1)
maximumNotionalAmount nsD:maximumNotionalAmount 0 (1)
Collapse Derivation Tree:
Collapse References:
nsD:multipleExercise
