Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxOption
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxOption
Containing Schema: fpml-fx-5-10.xsd
Abstract
Documentation:
An FX option transaction definition.

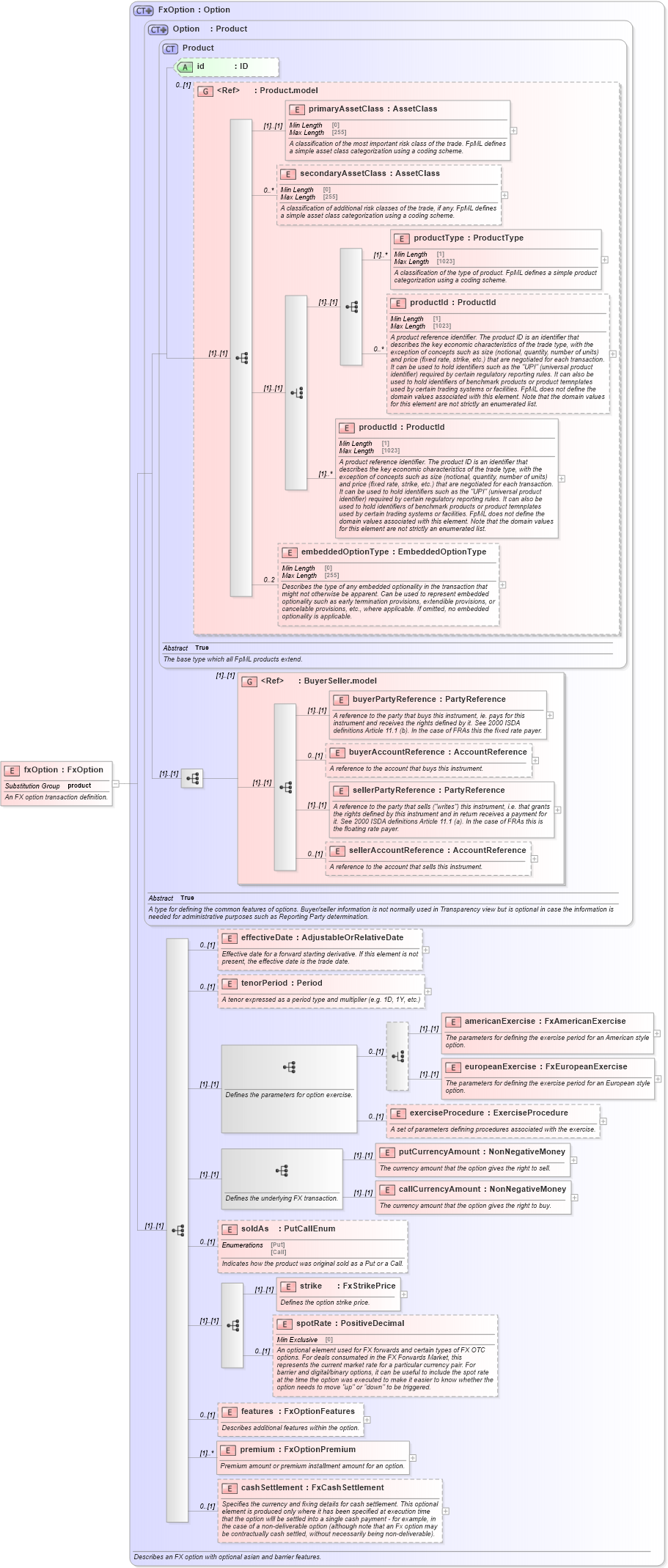

Collapse XSD Schema Diagram:
Drilldown into cashSettlement in schema fpml-fx-5-10_xsd2 Drilldown into premium in schema fpml-fx-5-10_xsd2 Drilldown into features in schema fpml-fx-5-10_xsd2 Drilldown into spotRate in schema fpml-fx-5-10_xsd2 Drilldown into strike in schema fpml-fx-5-10_xsd2 Drilldown into soldAs in schema fpml-fx-5-10_xsd2 Drilldown into callCurrencyAmount in schema fpml-fx-5-10_xsd2 Drilldown into putCurrencyAmount in schema fpml-fx-5-10_xsd2 Drilldown into exerciseProcedure in schema fpml-fx-5-10_xsd2 Drilldown into europeanExercise in schema fpml-fx-5-10_xsd2 Drilldown into americanExercise in schema fpml-fx-5-10_xsd2 Drilldown into tenorPeriod in schema fpml-fx-5-10_xsd2 Drilldown into effectiveDate in schema fpml-fx-5-10_xsd2 Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productType in schema fpml-shared-5-10_xsd3 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into Product.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Product in schema fpml-shared-5-10_xsd3 Drilldown into Option in schema fpml-option-shared-5-10_xsd2 Drilldown into FxOption in schema fpml-fx-5-10_xsd2XSD Diagram of fxOption in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxOption" type="FxOption" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An FX option transaction definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsD:primaryAssetClass (1) (1)
secondaryAssetClass nsD:secondaryAssetClass 0 unbounded
productType nsD:productType (1) unbounded
productId nsD:productId 0 unbounded
productId nsD:productId (1) unbounded
embeddedOptionType nsD:embeddedOptionType 0 2
buyerPartyReference nsD:buyerPartyReference (1) (1)
buyerAccountReference nsD:buyerAccountReference 0 (1)
sellerPartyReference nsD:sellerPartyReference (1) (1)
sellerAccountReference nsD:sellerAccountReference 0 (1)
effectiveDate nsD:effectiveDate 0 (1)
tenorPeriod nsD:tenorPeriod 0 (1)
americanExercise nsD:americanExercise (1) (1)
europeanExercise nsD:europeanExercise (1) (1)
exerciseProcedure nsD:exerciseProcedure 0 (1)
putCurrencyAmount nsD:putCurrencyAmount (1) (1)
callCurrencyAmount nsD:callCurrencyAmount (1) (1)
soldAs nsD:soldAs 0 (1)
strike nsD:strike (1) (1)
spotRate nsD:spotRate 0 (1)
features nsD:features 0 (1)
premium nsD:premium (1) unbounded
cashSettlement nsD:cashSettlement 0 (1)
<xs:group> nsD:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:product
