Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxPerformanceLeg
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-fx-5-10.xsd
Abstract True
Documentation:
Floating FX Rate describes Fixed FX Rate Payer and Fixed Rate
Collapse XSD Schema Diagram:

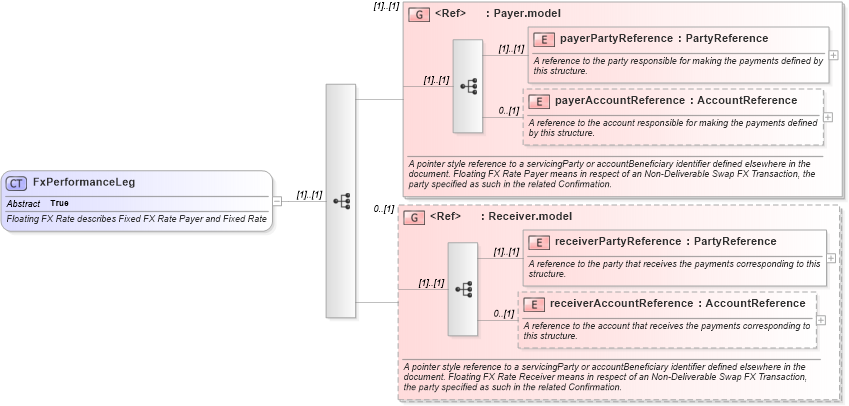

Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd2 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into Payer.model in schema fpml-shared-5-10_xsd2XSD Diagram of FxPerformanceLeg in schema fpml-fx-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxPerformanceLeg" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Floating FX Rate describes Fixed FX Rate Payer and Fixed Rate</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="Payer.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A pointer style reference to a servicingParty or accountBeneficiary identifier defined elsewhere in the document. Floating FX Rate Payer means in respect of an Non-Deliverable Swap FX Transaction, the party specified as such in the related Confirmation.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
        <xsd:group ref="Receiver.model" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A pointer style reference to a servicingParty or accountBeneficiary identifier defined elsewhere in the document. Floating FX Rate Receiver means in respect of an Non-Deliverable Swap FX Transaction, the party specified as such in the related Confirmation.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsC:payerPartyReference (1) (1)
payerAccountReference nsC:payerAccountReference 0 (1)
receiverPartyReference nsC:receiverPartyReference (1) (1)
receiverAccountReference nsC:receiverAccountReference 0 (1)
<xs:group> nsC:Payer.model (1) (1)
<xs:group> nsC:Receiver.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:FxPerformanceFixedLeg, nsC:FxPerformanceFloatingLeg
