Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxPerformanceLeg
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-fx-5-10.xsd
Abstract True
Documentation:
Floating FX Rate describes Fixed FX Rate Payer and Fixed Rate

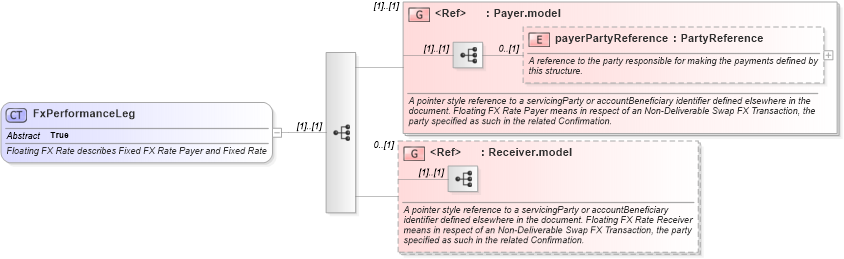

Collapse XSD Schema Diagram:
Drilldown into Receiver.model in schema fpml-shared-5-10_xsd5 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into Payer.model in schema fpml-shared-5-10_xsd5XSD Diagram of FxPerformanceLeg in schema fpml-fx-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxPerformanceLeg" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Floating FX Rate describes Fixed FX Rate Payer and Fixed Rate</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="Payer.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A pointer style reference to a servicingParty or accountBeneficiary identifier defined elsewhere in the document. Floating FX Rate Payer means in respect of an Non-Deliverable Swap FX Transaction, the party specified as such in the related Confirmation.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
        <xsd:group ref="Receiver.model" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A pointer style reference to a servicingParty or accountBeneficiary identifier defined elsewhere in the document. Floating FX Rate Receiver means in respect of an Non-Deliverable Swap FX Transaction, the party specified as such in the related Confirmation.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsF:payerPartyReference 0 (1)
<xs:group> nsF:Payer.model (1) (1)
<xs:group> nsF:Receiver.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsF:FxPerformanceFixedLeg
