Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxSettlementRateSource
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-shared-5-10.xsd
Abstract

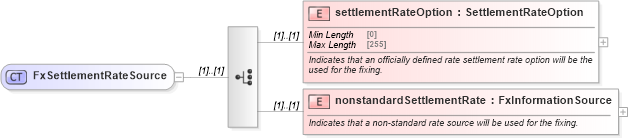

Collapse XSD Schema Diagram:
Drilldown into nonstandardSettlementRate in schema fpml-shared-5-10_xsd3 Drilldown into settlementRateOption in schema fpml-shared-5-10_xsd3XSD Diagram of FxSettlementRateSource in schema fpml-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxSettlementRateSource">
    <xsd:choice>
        <xsd:element name="settlementRateOption" type="SettlementRateOption">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates that an officially defined rate settlement rate option will be the used for the fixing.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="nonstandardSettlementRate" type="FxInformationSource">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates that a non-standard rate source will be used for the fixing.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementRateOption nsD:settlementRateOption (1) (1)
nonstandardSettlementRate nsD:nonstandardSettlementRate (1) (1)
Collapse Derivation Tree:
Collapse References:
nsD:settlementRateSource
