Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxSettlementSchedule
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxSchedule
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract

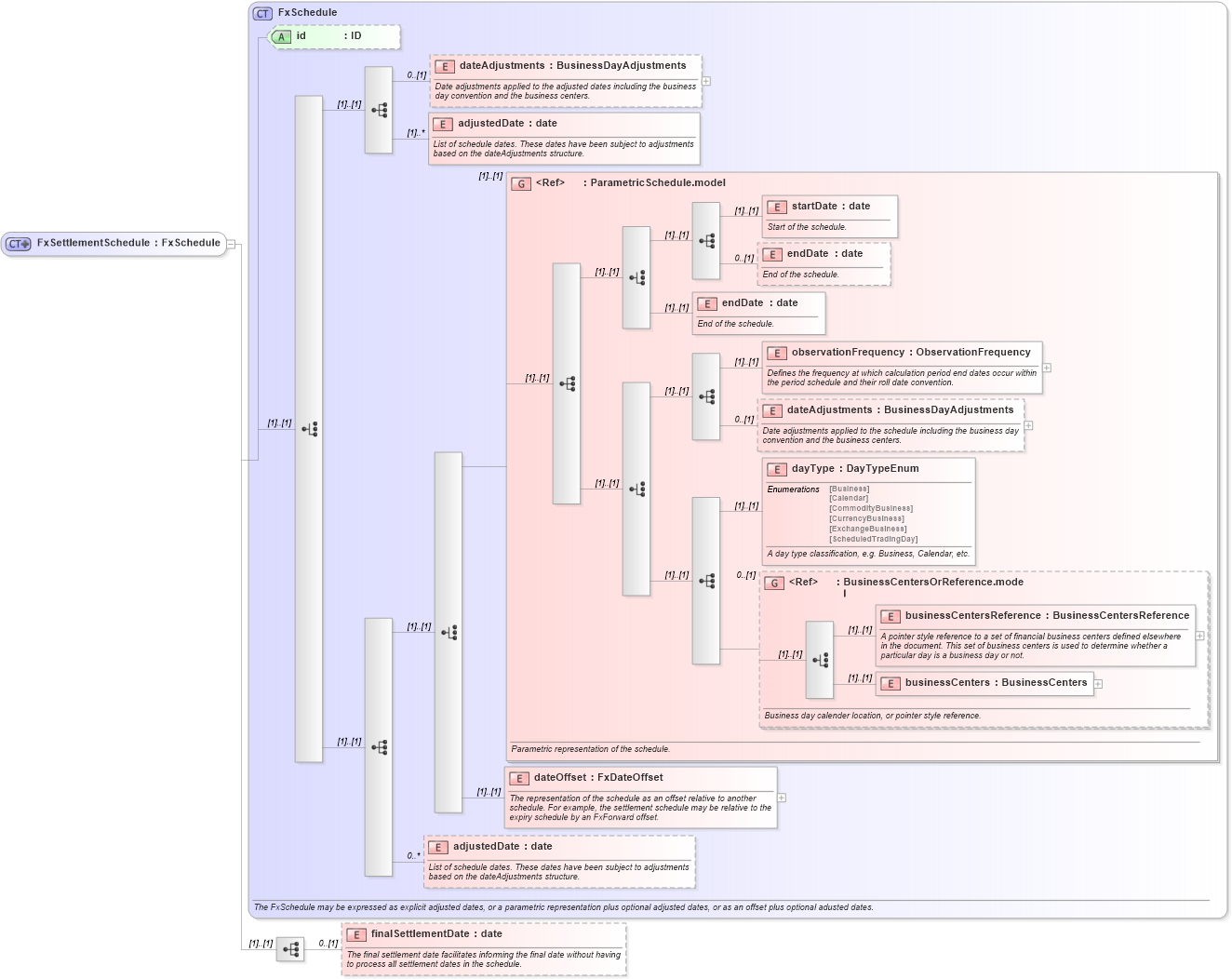

Collapse XSD Schema Diagram:
Drilldown into finalSettlementDate in schema fpml-fx-targets-5-10_xsd Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd Drilldown into dateOffset in schema fpml-fx-targets-5-10_xsd Drilldown into businessCenters in schema fpml-shared-5-10_xsd Drilldown into businessCentersReference in schema fpml-shared-5-10_xsd Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-10_xsd Drilldown into dayType in schema fpml-fx-targets-5-10_xsd Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd Drilldown into observationFrequency in schema fpml-fx-targets-5-10_xsd Drilldown into endDate in schema fpml-fx-targets-5-10_xsd Drilldown into endDate in schema fpml-fx-targets-5-10_xsd Drilldown into startDate in schema fpml-fx-targets-5-10_xsd Drilldown into ParametricSchedule.model in schema fpml-fx-targets-5-10_xsd Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd Drilldown into id in schema fpml-fx-targets-5-10_xsd Drilldown into FxSchedule in schema fpml-fx-targets-5-10_xsdXSD Diagram of FxSettlementSchedule in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxSettlementSchedule">
    <xsd:complexContent>
        <xsd:extension base="FxSchedule">
            <xsd:sequence>
                <xsd:element name="finalSettlementDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The final settlement date facilitates informing the final date without having to process all settlement dates in the schedule.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dateAdjustments nsA:dateAdjustments 0 (1)
adjustedDate nsA:adjustedDate (1) unbounded
startDate nsA:startDate (1) (1)
endDate nsA:endDate 0 (1)
endDate nsA:endDate (1) (1)
observationFrequency nsA:observationFrequency (1) (1)
dateAdjustments nsA:dateAdjustments 0 (1)
dayType nsA:dayType (1) (1)
businessCentersReference nsA:businessCentersReference (1) (1)
businessCenters nsA:businessCenters (1) (1)
dateOffset nsA:dateOffset (1) (1)
adjustedDate nsA:adjustedDate 0 unbounded
finalSettlementDate nsA:finalSettlementDate 0 (1)
<xs:group> nsA:ParametricSchedule.model (1) (1)
<xs:group> nsA:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:settlementSchedule, nsA:settlementSchedule
