Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxSingleLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Product
Containing Schema: fpml-fx-5-10.xsd
Abstract
Documentation:
A type defining either a spot or forward FX transactions.

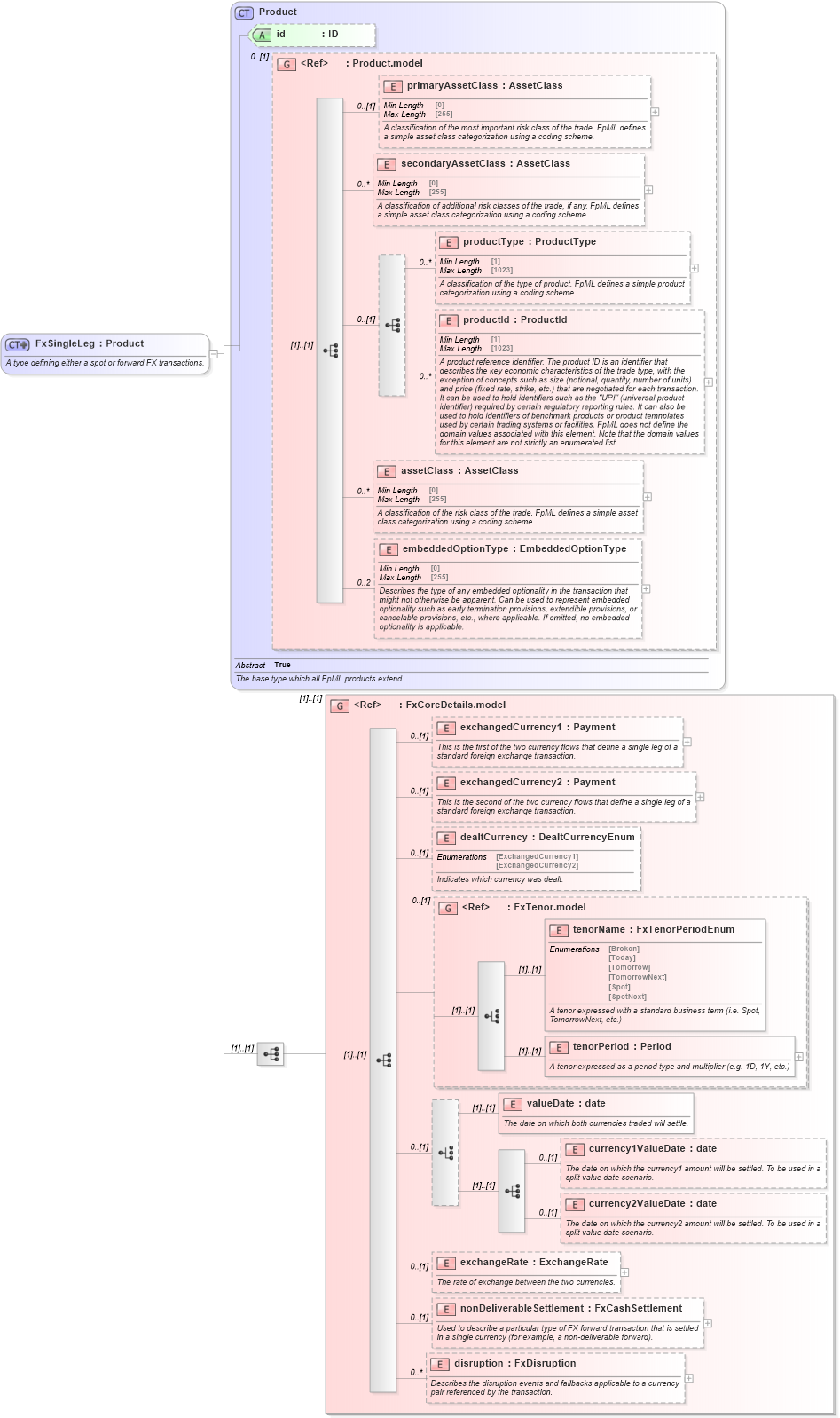

Collapse XSD Schema Diagram:
Drilldown into disruption in schema fpml-fx-5-10_xsd3 Drilldown into nonDeliverableSettlement in schema fpml-fx-5-10_xsd3 Drilldown into exchangeRate in schema fpml-fx-5-10_xsd3 Drilldown into currency2ValueDate in schema fpml-fx-5-10_xsd3 Drilldown into currency1ValueDate in schema fpml-fx-5-10_xsd3 Drilldown into valueDate in schema fpml-fx-5-10_xsd3 Drilldown into tenorPeriod in schema fpml-fx-5-10_xsd3 Drilldown into tenorName in schema fpml-fx-5-10_xsd3 Drilldown into FxTenor.model in schema fpml-fx-5-10_xsd3 Drilldown into dealtCurrency in schema fpml-fx-5-10_xsd3 Drilldown into exchangedCurrency2 in schema fpml-fx-5-10_xsd3 Drilldown into exchangedCurrency1 in schema fpml-fx-5-10_xsd3 Drilldown into FxCoreDetails.model in schema fpml-fx-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd4 Drilldown into assetClass in schema fpml-shared-5-10_xsd4 Drilldown into productId in schema fpml-shared-5-10_xsd4 Drilldown into productType in schema fpml-shared-5-10_xsd4 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into Product.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Product in schema fpml-shared-5-10_xsd4XSD Diagram of FxSingleLeg in schema fpml-fx-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxSingleLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining either a spot or forward FX transactions.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:group ref="FxCoreDetails.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsE:primaryAssetClass 0 (1)
secondaryAssetClass nsE:secondaryAssetClass 0 unbounded
productType nsE:productType 0 unbounded
productId nsE:productId 0 unbounded
assetClass nsE:assetClass 0 unbounded
embeddedOptionType nsE:embeddedOptionType 0 2
exchangedCurrency1 nsE:exchangedCurrency1 0 (1)
exchangedCurrency2 nsE:exchangedCurrency2 0 (1)
dealtCurrency nsE:dealtCurrency 0 (1)
tenorName nsE:tenorName (1) (1)
tenorPeriod nsE:tenorPeriod (1) (1)
valueDate nsE:valueDate (1) (1)
currency1ValueDate nsE:currency1ValueDate 0 (1)
currency2ValueDate nsE:currency2ValueDate 0 (1)
exchangeRate nsE:exchangeRate 0 (1)
nonDeliverableSettlement nsE:nonDeliverableSettlement 0 (1)
disruption nsE:disruption 0 unbounded
<xs:group> nsE:FxCoreDetails.model (1) (1)
<xs:group> nsE:FxTenor.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:fxSingleLeg
