Definition Type: ComplexType
Name: FxTargetConstantPayoffRegion
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxTargetPayoffRegion
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
A fixing region in which the payoff is a constant value (a binary|digital payoff, or zero).

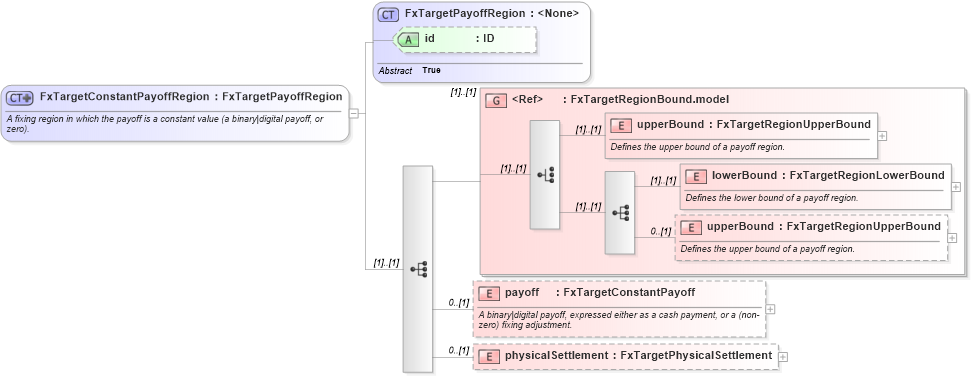

Collapse XSD Schema Diagram:
Drilldown into physicalSettlement in schema fpml-fx-targets-5-10_xsd3 Drilldown into payoff in schema fpml-fx-targets-5-10_xsd3 Drilldown into upperBound in schema fpml-fx-targets-5-10_xsd3 Drilldown into lowerBound in schema fpml-fx-targets-5-10_xsd3 Drilldown into upperBound in schema fpml-fx-targets-5-10_xsd3 Drilldown into FxTargetRegionBound.model in schema fpml-fx-targets-5-10_xsd3 Drilldown into id in schema fpml-fx-targets-5-10_xsd3 Drilldown into FxTargetPayoffRegion in schema fpml-fx-targets-5-10_xsd3XSD Diagram of FxTargetConstantPayoffRegion in schema fpml-fx-targets-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxTargetConstantPayoffRegion">
    <xsd:annotation>
        <xsd:documentation>A fixing region in which the payoff is a constant value (a binary|digital payoff, or zero).</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FxTargetPayoffRegion">
            <xsd:sequence>
                <xsd:group ref="FxTargetRegionBound.model" />
                <xsd:element name="payoff" type="FxTargetConstantPayoff" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation>A binary|digital payoff, expressed either as a cash payment, or a (non-zero) fixing adjustment.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="physicalSettlement" type="FxTargetPhysicalSettlement" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
upperBound nsF:upperBound (1) (1)
lowerBound nsF:lowerBound (1) (1)
upperBound nsF:upperBound 0 (1)
payoff nsF:payoff 0 (1)
physicalSettlement nsF:physicalSettlement 0 (1)
<xs:group> nsF:FxTargetRegionBound.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id Optional
Collapse Derivation Tree:
Collapse References:
nsF:constantPayoffRegion, nsF:constantPayoffRegionnsF:constantPayoffRegion,
