Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: GenericFrequency
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:Frequency
Containing Schema: fpml-generic-5-10.xsd
Abstract

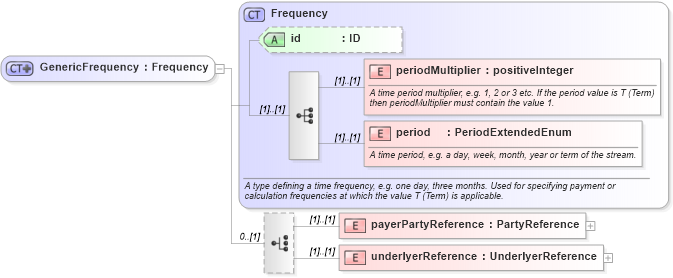

Collapse XSD Schema Diagram:
Drilldown into underlyerReference in schema fpml-generic-5-10_xsd Drilldown into payerPartyReference in schema fpml-generic-5-10_xsd Drilldown into period in schema fpml-shared-5-10_xsd Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Frequency in schema fpml-shared-5-10_xsdXSD Diagram of GenericFrequency in schema fpml-generic-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="GenericFrequency">
    <xsd:complexContent>
        <xsd:extension base="Frequency">
            <xsd:choice minOccurs="0">
                <xsd:element name="payerPartyReference" type="PartyReference" />
                <xsd:element name="underlyerReference" type="UnderlyerReference" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsA:periodMultiplier (1) (1)
period nsA:period (1) (1)
payerPartyReference nsA:payerPartyReference (1) (1)
underlyerReference nsA:underlyerReference (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:paymentFrequency
