Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: IndependentAmount
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-10.xsd
Abstract

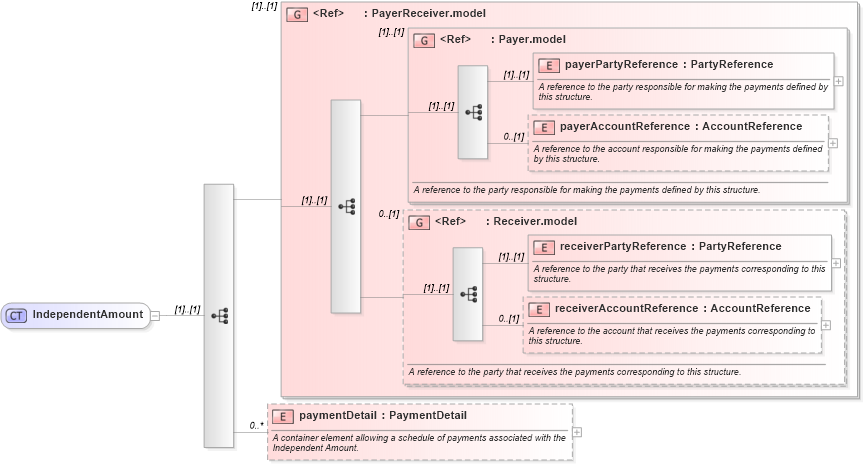

Collapse XSD Schema Diagram:
Drilldown into paymentDetail in schema fpml-shared-5-10_xsd2 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd2 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into Payer.model in schema fpml-shared-5-10_xsd2 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd2XSD Diagram of IndependentAmount in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="IndependentAmount">
    <xsd:sequence>
        <xsd:group ref="PayerReceiver.model" />
        <xsd:element name="paymentDetail" type="PaymentDetail" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A container element allowing a schedule of payments associated with the Independent Amount.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsC:payerPartyReference (1) (1)
payerAccountReference nsC:payerAccountReference 0 (1)
receiverPartyReference nsC:receiverPartyReference (1) (1)
receiverAccountReference nsC:receiverAccountReference 0 (1)
paymentDetail nsC:paymentDetail 0 unbounded
<xs:group> nsC:PayerReceiver.model (1) (1)
<xs:group> nsC:Payer.model (1) (1)
<xs:group> nsC:Receiver.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:independentAmount
