Definition Type: Element
Name: insurer
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:LegalEntity
Containing Schema: fpml-asset-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

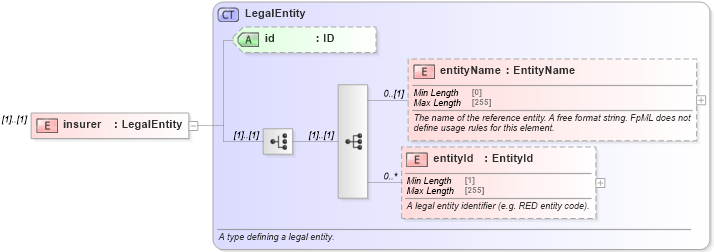

Collapse XSD Schema Diagram:
Drilldown into entityId in schema fpml-shared-5-10_xsd4 Drilldown into entityName in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into LegalEntity in schema fpml-shared-5-10_xsd4XSD Diagram of insurer in schema fpml-asset-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="insurer" type="LegalEntity" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
entityName nsE:entityName 0 (1)
entityId nsE:entityId 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
