Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: lagDuration
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Period
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The period during which observations will be made. If a firstObservationDateOffset is specified, the observation period will start the specified interval prior to each Calculation Period - i.e. if the firstObservationDateOffset is 4 months and the lagDuration is 3 months, observations will be taken in months 4,3 and 2 (but not 1) prior to each Calculation Period. If no firstObservationDate is specified, the observation period will end immediately preceding each Calculation Period.

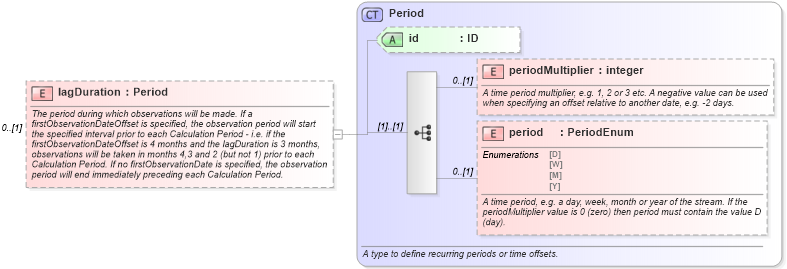

Collapse XSD Schema Diagram:
Drilldown into period in schema fpml-shared-5-10_xsd4 Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Period in schema fpml-shared-5-10_xsd4XSD Diagram of lagDuration in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="lagDuration" type="Period" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The period during which observations will be made. If a firstObservationDateOffset is specified, the observation period will start the specified interval prior to each Calculation Period - i.e. if the firstObservationDateOffset is 4 months and the lagDuration is 3 months, observations will be taken in months 4,3 and 2 (but not 1) prior to each Calculation Period. If no firstObservationDate is specified, the observation period will end immediately preceding each Calculation Period.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsE:periodMultiplier 0 (1)
period nsE:period 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
