Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: legIdentifier
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:LegIdentifier
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Version aware identification of this leg.

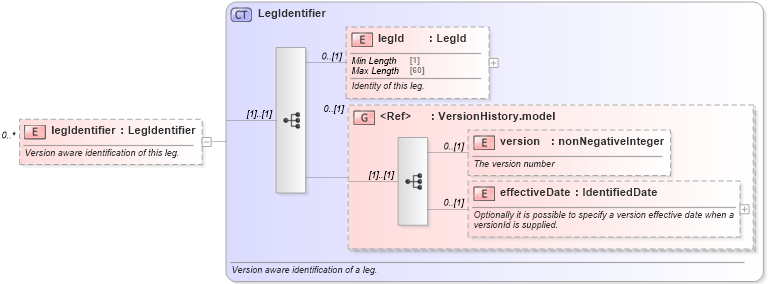

Collapse XSD Schema Diagram:
Drilldown into effectiveDate in schema fpml-shared-5-10_xsd4 Drilldown into version in schema fpml-shared-5-10_xsd4 Drilldown into VersionHistory.model in schema fpml-shared-5-10_xsd4 Drilldown into legId in schema fpml-shared-5-10_xsd4 Drilldown into LegIdentifier in schema fpml-shared-5-10_xsd4XSD Diagram of legIdentifier in schema fpml-shared-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="legIdentifier" type="LegIdentifier" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Version aware identification of this leg.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legId nsE:legId 0 (1)
version nsE:version 0 (1)
effectiveDate nsE:effectiveDate 0 (1)
<xs:group> nsE:VersionHistory.model 0 (1)
Collapse Derivation Tree:
