Docs for schema item leverage in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	leverage
Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	nsE:FxAccrualLeverage
Containing Schema:	fpml-fx-accruals-5-10.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract
Documentation:	These structures define a leverage multiplier to the payoff amounts at settlement points.

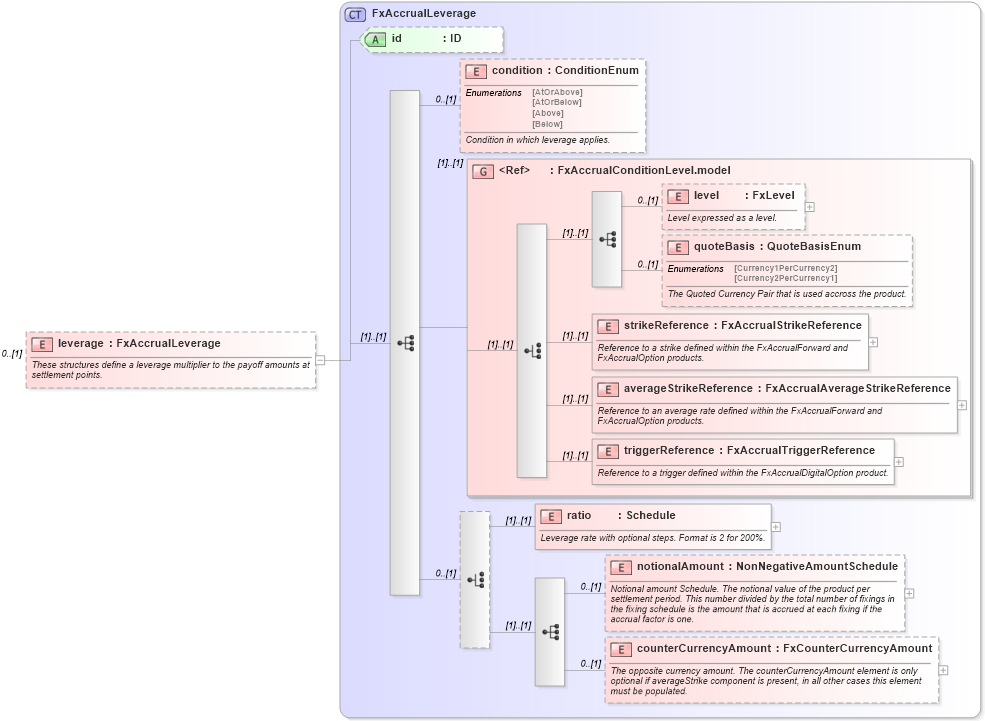

XSD Schema Diagram:

XSD Diagram of leverage in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="leverage" type="FxAccrualLeverage" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">These structures define a leverage multiplier to the payoff amounts at settlement points.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
condition	nsE:condition	0	(1)
level	nsE:level	0	(1)
quoteBasis	nsE:quoteBasis	0	(1)
strikeReference	nsE:strikeReference	(1)	(1)
averageStrikeReference	nsE:averageStrikeReference	(1)	(1)
triggerReference	nsE:triggerReference	(1)	(1)
ratio	nsE:ratio	(1)	(1)
notionalAmount	nsE:notionalAmount	0	(1)
counterCurrencyAmount	nsE:counterCurrencyAmount	0	(1)
<xs:group>	nsE:FxAccrualConditionLevel.model	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsE:id		(Optional)

Derivation Tree:
	nsE:FxAccrualLeverage *leverage*
