Definition Type: ComplexType
Name: LimitedCreditDefaultSwap
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-cd-5-10.xsd
Abstract
Documentation:
A limited version of the CDS type used as an underlyer to CDS options in Transparency view, to avoid requiring product type etc.

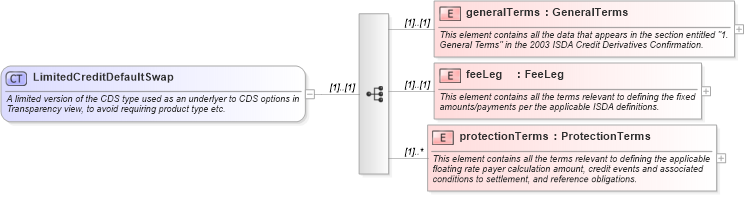

Collapse XSD Schema Diagram:
Drilldown into protectionTerms in schema fpml-cd-5-10_xsd4 Drilldown into feeLeg in schema fpml-cd-5-10_xsd4 Drilldown into generalTerms in schema fpml-cd-5-10_xsd4XSD Diagram of LimitedCreditDefaultSwap in schema fpml-cd-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="LimitedCreditDefaultSwap">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A limited version of the CDS type used as an underlyer to CDS options in Transparency view, to avoid requiring product type etc.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="generalTerms" type="GeneralTerms">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">This element contains all the data that appears in the section entitled "1. General Terms" in the 2003 ISDA Credit Derivatives Confirmation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="feeLeg" type="FeeLeg">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">This element contains all the terms relevant to defining the fixed amounts/payments per the applicable ISDA definitions.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="protectionTerms" type="ProtectionTerms" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">This element contains all the terms relevant to defining the applicable floating rate payer calculation amount, credit events and associated conditions to settlement, and reference obligations.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
generalTerms nsF:generalTerms (1) (1)
feeLeg nsF:feeLeg (1) (1)
protectionTerms nsF:protectionTerms (1) unbounded
Collapse Derivation Tree:
Collapse References:
nsF:creditDefaultSwap
