Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: LoanAllocationIdentifier
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:TradeIdentifier
Containing Schema: fpml-loan-5-10.xsd
Abstract
Documentation:
A structure that contains sender-specific and optional shared loan allocation identifiers.

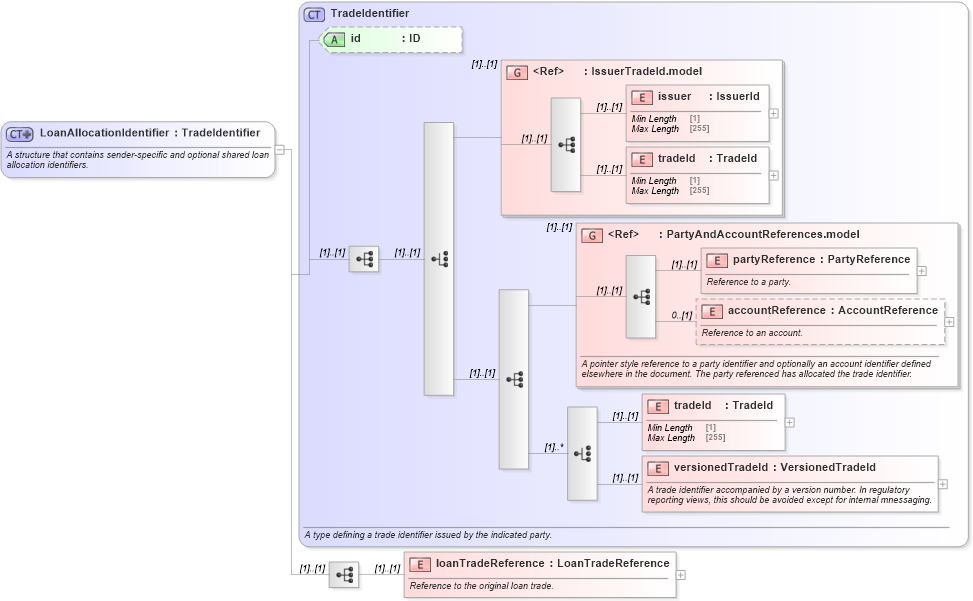

Collapse XSD Schema Diagram:
Drilldown into loanTradeReference in schema fpml-loan-5-10_xsd Drilldown into versionedTradeId in schema fpml-doc-5-10_xsd Drilldown into tradeId in schema fpml-doc-5-10_xsd Drilldown into accountReference in schema fpml-shared-5-10_xsd Drilldown into partyReference in schema fpml-shared-5-10_xsd Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd Drilldown into tradeId in schema fpml-shared-5-10_xsd Drilldown into issuer in schema fpml-shared-5-10_xsd Drilldown into IssuerTradeId.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-doc-5-10_xsd Drilldown into TradeIdentifier in schema fpml-doc-5-10_xsdXSD Diagram of LoanAllocationIdentifier in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="LoanAllocationIdentifier">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure that contains sender-specific and optional shared loan allocation identifiers.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="TradeIdentifier">
            <xsd:sequence>
                <xsd:element name="loanTradeReference" type="LoanTradeReference">
                    <xsd:annotation>
                        <xsd:documentation>Reference to the original loan trade.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
issuer nsA:issuer (1) (1)
tradeId nsA:tradeId (1) (1)
partyReference nsA:partyReference (1) (1)
accountReference nsA:accountReference 0 (1)
tradeId nsA:tradeId (1) (1)
versionedTradeId nsA:versionedTradeId (1) (1)
loanTradeReference nsA:loanTradeReference (1) (1)
<xs:group> nsA:IssuerTradeId.model (1) (1)
<xs:group> nsA:PartyAndAccountReferences.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:allocationIdnsA:allocationIdentifier, nsA:allocationIdentifier, nsA:allocationIdentifier,
