Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: lowerBound
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxAccrualRegionLowerBound
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Defines the lower bound of a payoff region.

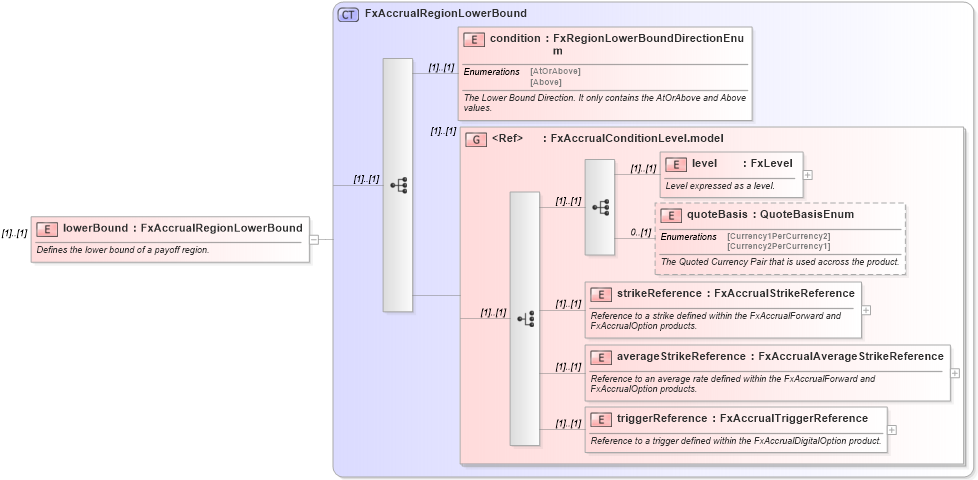

Collapse XSD Schema Diagram:
Drilldown into triggerReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into averageStrikeReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into strikeReference in schema fpml-fx-accruals-5-10_xsd1 Drilldown into quoteBasis in schema fpml-fx-accruals-5-10_xsd1 Drilldown into level in schema fpml-fx-accruals-5-10_xsd1 Drilldown into FxAccrualConditionLevel.model in schema fpml-fx-accruals-5-10_xsd1 Drilldown into condition in schema fpml-fx-accruals-5-10_xsd1 Drilldown into FxAccrualRegionLowerBound in schema fpml-fx-accruals-5-10_xsd1XSD Diagram of lowerBound in schema fpml-fx-accruals-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="lowerBound" type="FxAccrualRegionLowerBound">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the lower bound of a payoff region.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
condition nsD:condition (1) (1)
level nsD:level (1) (1)
quoteBasis nsD:quoteBasis 0 (1)
strikeReference nsD:strikeReference (1) (1)
averageStrikeReference nsD:averageStrikeReference (1) (1)
triggerReference nsD:triggerReference (1) (1)
<xs:group> nsD:FxAccrualConditionLevel.model (1) (1)
Collapse Derivation Tree:
