Definition Type: Element
Name: masterAgreement
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:MasterAgreement
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The agreement executed between the parties and intended to govern all OTC derivatives transactions between those parties.

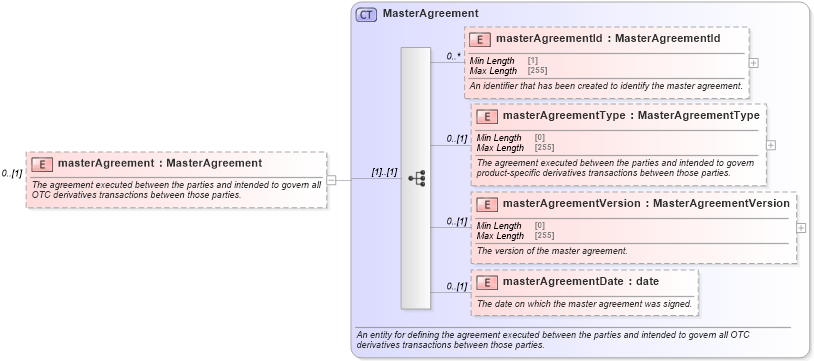

Collapse XSD Schema Diagram:
Drilldown into masterAgreementDate in schema fpml-shared-5-10_xsd2 Drilldown into masterAgreementVersion in schema fpml-shared-5-10_xsd2 Drilldown into masterAgreementType in schema fpml-shared-5-10_xsd2 Drilldown into masterAgreementId in schema fpml-shared-5-10_xsd2 Drilldown into MasterAgreement in schema fpml-shared-5-10_xsd2XSD Diagram of masterAgreement in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="masterAgreement" type="MasterAgreement" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The agreement executed between the parties and intended to govern all OTC derivatives transactions between those parties.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
masterAgreementId nsC:masterAgreementId 0 unbounded
masterAgreementType nsC:masterAgreementType 0 (1)
masterAgreementVersion nsC:masterAgreementVersion 0 (1)
masterAgreementDate nsC:masterAgreementDate 0 (1)
Collapse Derivation Tree:
