Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: minPhysicalQuantity
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CommodityNotionalQuantity
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
The minimum quantity to be delivered. If separate minimums need to be specified for different periods (e.g. a minimum per day and a minimum per month) this element should be repeated.

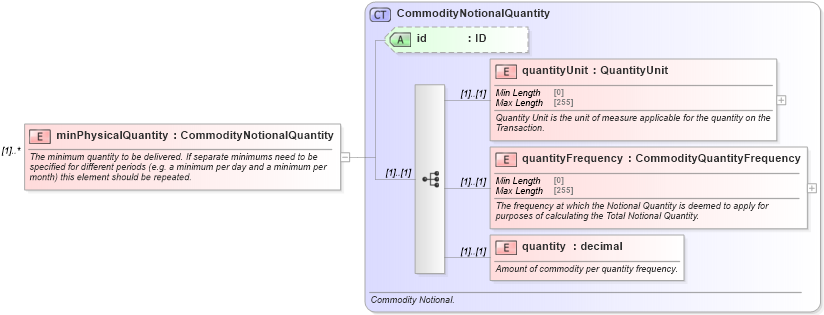

Collapse XSD Schema Diagram:
Drilldown into quantity in schema fpml-com-5-10_xsd Drilldown into quantityFrequency in schema fpml-com-5-10_xsd Drilldown into quantityUnit in schema fpml-com-5-10_xsd Drilldown into id in schema fpml-com-5-10_xsd Drilldown into CommodityNotionalQuantity in schema fpml-com-5-10_xsdXSD Diagram of minPhysicalQuantity in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="minPhysicalQuantity" type="CommodityNotionalQuantity" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The minimum quantity to be delivered. If separate minimums need to be specified for different periods (e.g. a minimum per day and a minimum per month) this element should be repeated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityUnit nsA:quantityUnit (1) (1)
quantityFrequency nsA:quantityFrequency (1) (1)
quantity nsA:quantity (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
