Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: MoneyRef
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:PositiveMoney
Containing Schema: fpml-business-events-5-10.xsd
Abstract
Documentation:
A type defining a currency amount with a reference.

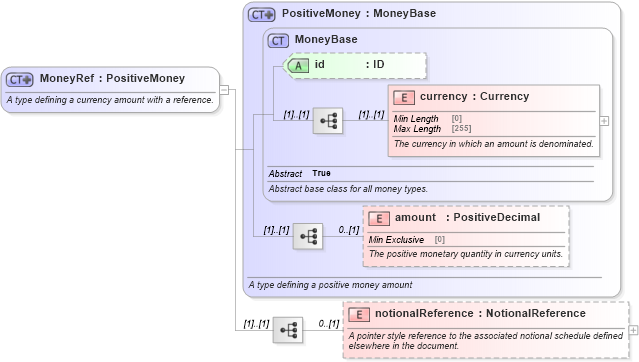

Collapse XSD Schema Diagram:
Drilldown into notionalReference in schema fpml-business-events-5-10_xsd4 Drilldown into amount in schema fpml-shared-5-10_xsd5 Drilldown into currency in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd5 Drilldown into PositiveMoney in schema fpml-shared-5-10_xsd5XSD Diagram of MoneyRef in schema fpml-business-events-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="MoneyRef">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a currency amount with a reference.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PositiveMoney">
            <xsd:sequence>
                <xsd:element name="notionalReference" type="NotionalReference" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A pointer style reference to the associated notional schedule defined elsewhere in the document.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsF:currency (1) (1)
amount nsF:amount 0 (1)
notionalReference nsF:notionalReference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:changeInNotional
