Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notional
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CashflowNotional
Containing Schema: fpml-reconciliation-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The notional or notionals in effect on the last day of the last calculation period in each stream.

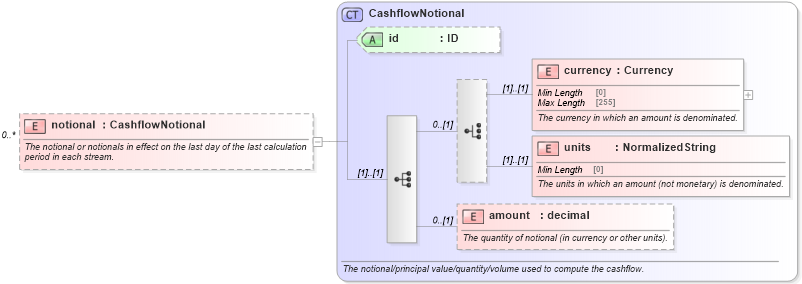

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-shared-5-10_xsd4 Drilldown into units in schema fpml-shared-5-10_xsd4 Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into CashflowNotional in schema fpml-shared-5-10_xsd4XSD Diagram of notional in schema fpml-reconciliation-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notional" type="CashflowNotional" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The notional or notionals in effect on the last day of the last calculation period in each stream.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsE:currency (1) (1)
units nsE:units (1) (1)
amount nsE:amount 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
