Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notional
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:NonNegativeMoney
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Notional Amount means, in the case of Transaction Type Variance Swap, the currency and amount specified as such in the related Confirmation or an amount calculated in accordance with the following: Notional Amount = Vega Notional Amount / (0.02 x Fixed FX Rate). This element must be produced in case of Variance Swap transaction.

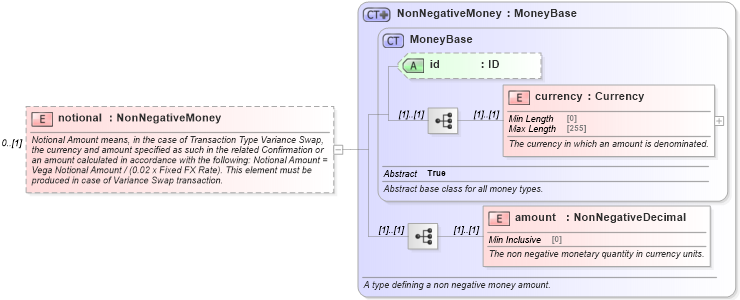

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-shared-5-10_xsd5 Drilldown into currency in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd5 Drilldown into NonNegativeMoney in schema fpml-shared-5-10_xsd5XSD Diagram of notional in schema fpml-fx-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notional" type="NonNegativeMoney" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Notional Amount means, in the case of Transaction Type Variance Swap, the currency and amount specified as such in the related Confirmation or an amount calculated in accordance with the following: Notional Amount = Vega Notional Amount / (0.02 x Fixed FX Rate). This element must be produced in case of Variance Swap transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsF:currency (1) (1)
amount nsF:amount (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
