Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notionalAmount
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:NotionalAmount
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Volume contracted when volume is specified as a currency-denominated amount.

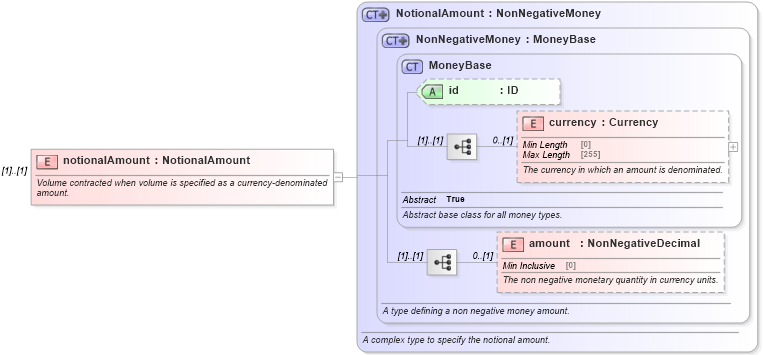

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-shared-5-10_xsd4 Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeMoney in schema fpml-shared-5-10_xsd4 Drilldown into NotionalAmount in schema fpml-shared-5-10_xsd4XSD Diagram of notionalAmount in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notionalAmount" type="NotionalAmount">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Volume contracted when volume is specified as a currency-denominated amount.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsE:currency 0 (1)
amount nsE:amount 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
