Docs for schema item notionalQuantitySchedule in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	notionalQuantitySchedule
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:CommodityNotionalQuantitySchedule
Containing Schema:	fpml-com-5-10.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.

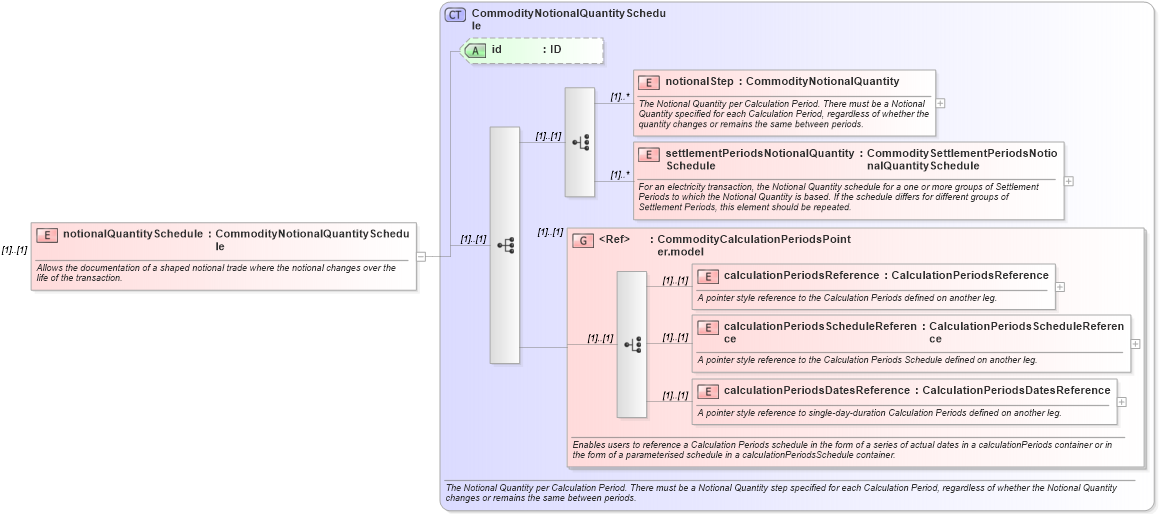

XSD Schema Diagram:

XSD Diagram of notionalQuantitySchedule in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="notionalQuantitySchedule" type="CommodityNotionalQuantitySchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
notionalStep	nsA:notionalStep	(1)	unbounded
settlementPeriodsNotionalQuantitySchedule	nsA:settlementPeriodsNotionalQuantitySchedule	(1)	unbounded
calculationPeriodsReference	nsA:calculationPeriodsReference	(1)	(1)
calculationPeriodsScheduleReference	nsA:calculationPeriodsScheduleReference	(1)	(1)
calculationPeriodsDatesReference	nsA:calculationPeriodsDatesReference	(1)	(1)
<xs:group>	nsA:CommodityCalculationPeriodsPointer.model	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		(Optional)

Derivation Tree:
	nsA:CommodityNotionalQuantitySchedule *notionalQuantitySchedule*
