Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notionalQuantitySchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommodityNotionalQuantitySchedule
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.

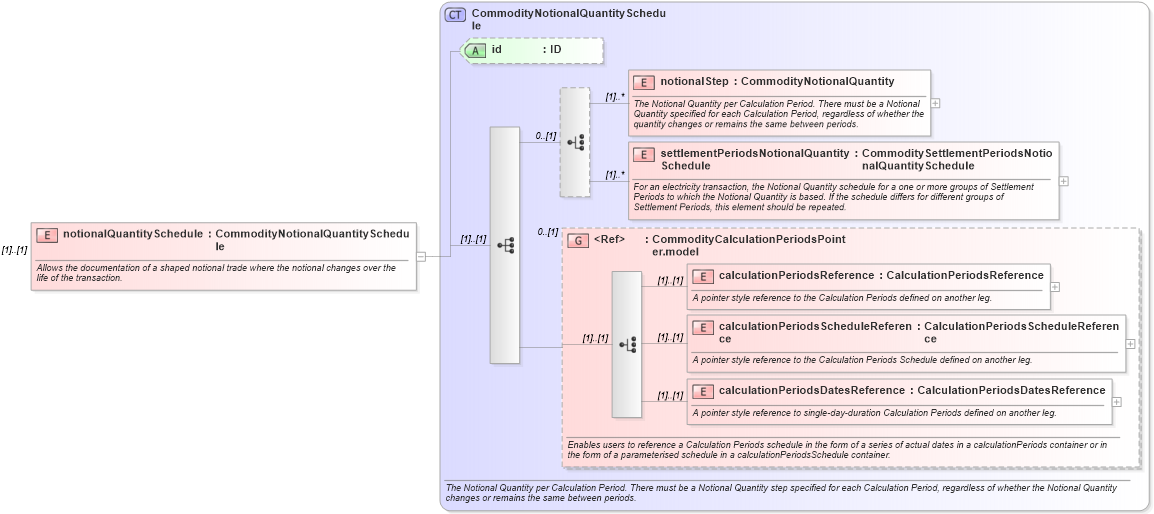

Collapse XSD Schema Diagram:
Drilldown into calculationPeriodsDatesReference in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriodsScheduleReference in schema fpml-com-5-10_xsd2 Drilldown into calculationPeriodsReference in schema fpml-com-5-10_xsd2 Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-5-10_xsd2 Drilldown into settlementPeriodsNotionalQuantitySchedule in schema fpml-com-5-10_xsd2 Drilldown into notionalStep in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-com-5-10_xsd2 Drilldown into CommodityNotionalQuantitySchedule in schema fpml-com-5-10_xsd2XSD Diagram of notionalQuantitySchedule in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notionalQuantitySchedule" type="CommodityNotionalQuantitySchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalStep nsE:notionalStep (1) unbounded
settlementPeriodsNotionalQuantitySchedule nsE:settlementPeriodsNotionalQuantitySchedule (1) unbounded
calculationPeriodsReference nsE:calculationPeriodsReference (1) (1)
calculationPeriodsScheduleReference nsE:calculationPeriodsScheduleReference (1) (1)
calculationPeriodsDatesReference nsE:calculationPeriodsDatesReference (1) (1)
<xs:group> nsE:CommodityCalculationPeriodsPointer.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
