Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notionalSchedule
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Notional
Containing Schema: fpml-ird-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The notional amount or notional amount schedule. Some reporting implementations may place the current notional in the "initialValue" element of the schedule for historical convenience. In the future the "currentNotional" element should be used for this purpose.

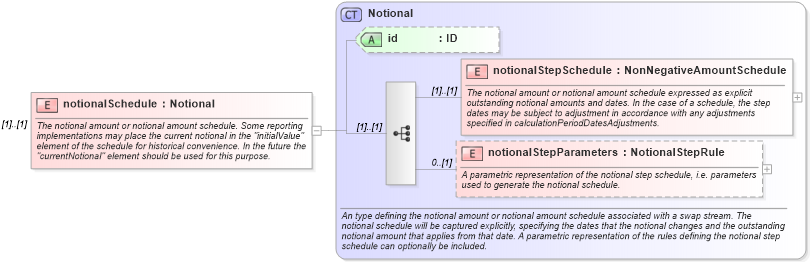

Collapse XSD Schema Diagram:
Drilldown into notionalStepParameters in schema fpml-ird-5-10_xsd2 Drilldown into notionalStepSchedule in schema fpml-ird-5-10_xsd2 Drilldown into id in schema fpml-ird-5-10_xsd2 Drilldown into Notional in schema fpml-ird-5-10_xsd2XSD Diagram of notionalSchedule in schema fpml-ird-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notionalSchedule" type="Notional">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The notional amount or notional amount schedule. Some reporting implementations may place the current notional in the "initialValue" element of the schedule for historical convenience. In the future the "currentNotional" element should be used for this purpose.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalStepSchedule nsD:notionalStepSchedule (1) (1)
notionalStepParameters nsD:notionalStepParameters 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
