Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: noTouch
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:NoTouchRateObservation
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A structure describing the outcome of an option having no touch events

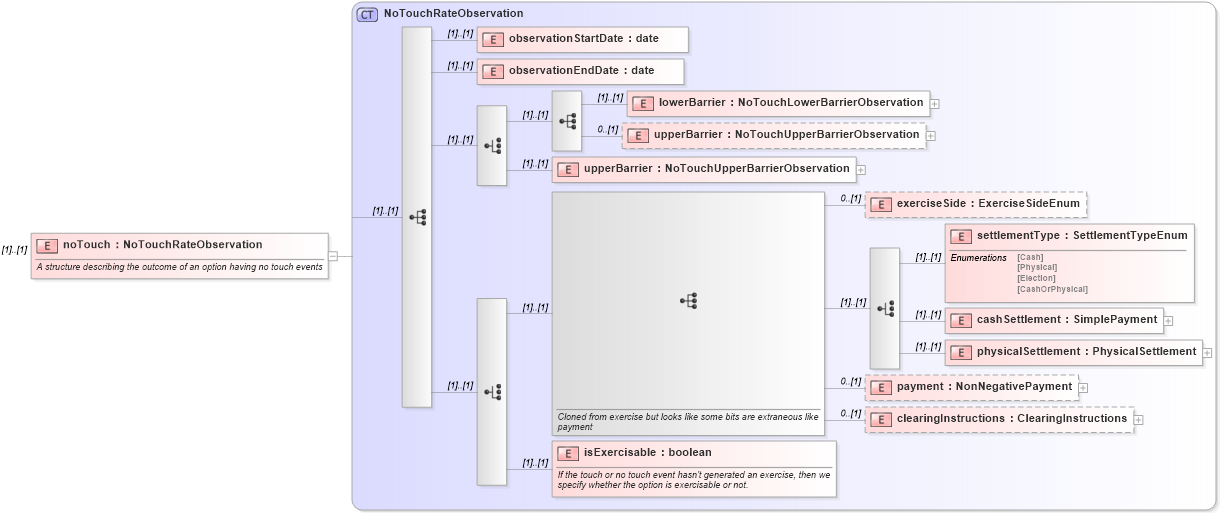

Collapse XSD Schema Diagram:
Drilldown into isExercisable in schema fpml-business-events-5-10_xsd Drilldown into clearingInstructions in schema fpml-business-events-5-10_xsd Drilldown into payment in schema fpml-business-events-5-10_xsd Drilldown into physicalSettlement in schema fpml-business-events-5-10_xsd Drilldown into cashSettlement in schema fpml-business-events-5-10_xsd Drilldown into settlementType in schema fpml-business-events-5-10_xsd Drilldown into exerciseSide in schema fpml-business-events-5-10_xsd Drilldown into upperBarrier in schema fpml-business-events-5-10_xsd Drilldown into upperBarrier in schema fpml-business-events-5-10_xsd Drilldown into lowerBarrier in schema fpml-business-events-5-10_xsd Drilldown into observationEndDate in schema fpml-business-events-5-10_xsd Drilldown into observationStartDate in schema fpml-business-events-5-10_xsd Drilldown into NoTouchRateObservation in schema fpml-business-events-5-10_xsdXSD Diagram of noTouch in schema fpml-business-events-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="noTouch" type="NoTouchRateObservation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure describing the outcome of an option having no touch events</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationStartDate nsA:observationStartDate (1) (1)
observationEndDate nsA:observationEndDate (1) (1)
lowerBarrier nsA:lowerBarrier (1) (1)
upperBarrier nsA:upperBarrier 0 (1)
upperBarrier nsA:upperBarrier (1) (1)
exerciseSide nsA:exerciseSide 0 (1)
settlementType nsA:settlementType (1) (1)
cashSettlement nsA:cashSettlement (1) (1)
physicalSettlement nsA:physicalSettlement (1) (1)
payment nsA:payment 0 (1)
clearingInstructions nsA:clearingInstructions 0 (1)
isExercisable nsA:isExercisable (1) (1)
Collapse Derivation Tree:
