Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: noTouch
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:NoTouchRateObservation
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A structure describing the outcome of an option having no touch events

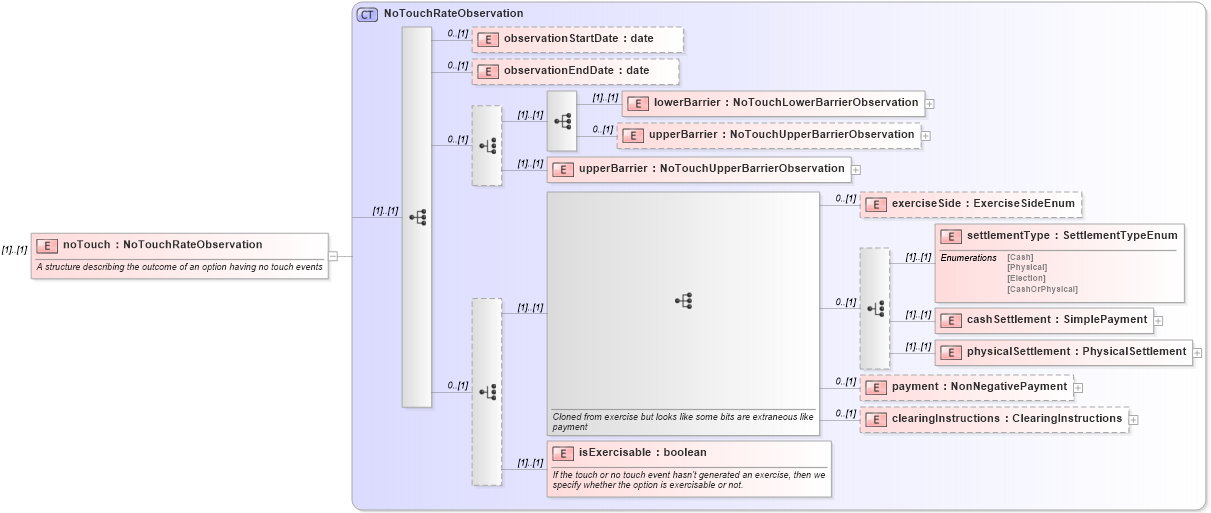

Collapse XSD Schema Diagram:
Drilldown into isExercisable in schema fpml-business-events-5-10_xsd2 Drilldown into clearingInstructions in schema fpml-business-events-5-10_xsd2 Drilldown into payment in schema fpml-business-events-5-10_xsd2 Drilldown into physicalSettlement in schema fpml-business-events-5-10_xsd2 Drilldown into cashSettlement in schema fpml-business-events-5-10_xsd2 Drilldown into settlementType in schema fpml-business-events-5-10_xsd2 Drilldown into exerciseSide in schema fpml-business-events-5-10_xsd2 Drilldown into upperBarrier in schema fpml-business-events-5-10_xsd2 Drilldown into upperBarrier in schema fpml-business-events-5-10_xsd2 Drilldown into lowerBarrier in schema fpml-business-events-5-10_xsd2 Drilldown into observationEndDate in schema fpml-business-events-5-10_xsd2 Drilldown into observationStartDate in schema fpml-business-events-5-10_xsd2 Drilldown into NoTouchRateObservation in schema fpml-business-events-5-10_xsd2XSD Diagram of noTouch in schema fpml-business-events-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="noTouch" type="NoTouchRateObservation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure describing the outcome of an option having no touch events</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationStartDate nsD:observationStartDate 0 (1)
observationEndDate nsD:observationEndDate 0 (1)
lowerBarrier nsD:lowerBarrier (1) (1)
upperBarrier nsD:upperBarrier 0 (1)
upperBarrier nsD:upperBarrier (1) (1)
exerciseSide nsD:exerciseSide 0 (1)
settlementType nsD:settlementType (1) (1)
cashSettlement nsD:cashSettlement (1) (1)
physicalSettlement nsD:physicalSettlement (1) (1)
payment nsD:payment 0 (1)
clearingInstructions nsD:clearingInstructions 0 (1)
isExercisable nsD:isExercisable (1) (1)
Collapse Derivation Tree:
