Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: observationPoint
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxBusinessCenterDateTime
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
The dates and times at which rate observations are made to determine whether a barrier event has occurred for a discrete or european barrier. If the time is not present then the time is deemed to be the same as the expiration time.

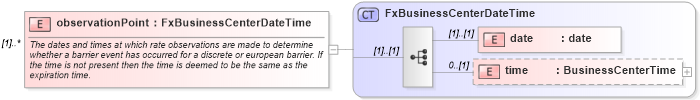

Collapse XSD Schema Diagram:
Drilldown into time in schema fpml-fx-5-10_xsd Drilldown into date in schema fpml-fx-5-10_xsd Drilldown into FxBusinessCenterDateTime in schema fpml-fx-5-10_xsdXSD Diagram of observationPoint in schema fpml-fx-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="observationPoint" type="FxBusinessCenterDateTime" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The dates and times at which rate observations are made to determine whether a barrier event has occurred for a discrete or european barrier. If the time is not present then the time is deemed to be the same as the expiration time.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
date nsA:date (1) (1)
time nsA:time 0 (1)
Collapse Derivation Tree:
