Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ObservedPrice
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-business-events-5-10.xsd
Abstract

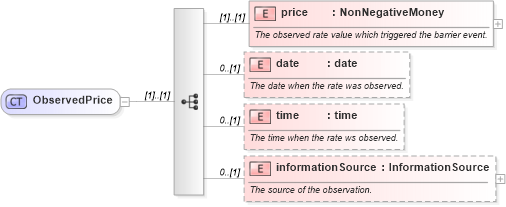

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-business-events-5-10_xsd Drilldown into time in schema fpml-business-events-5-10_xsd Drilldown into date in schema fpml-business-events-5-10_xsd Drilldown into price in schema fpml-business-events-5-10_xsdXSD Diagram of ObservedPrice in schema fpml-business-events-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ObservedPrice">
    <xsd:sequence>
        <xsd:element name="price" type="NonNegativeMoney">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The observed rate value which triggered the barrier event.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="date" type="xsd:date" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date when the rate was observed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="time" type="xsd:time" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The time when the rate ws observed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="informationSource" type="InformationSource" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The source of the observation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
price nsA:price (1) (1)
date nsA:date 0 (1)
time nsA:time 0 (1)
informationSource nsA:informationSource 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:maximumObservedPricensA:minimumObservedPrice,
