Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: OilTransferDelivery
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The physical delivery conditions specific to an oil product delivered by title transfer.

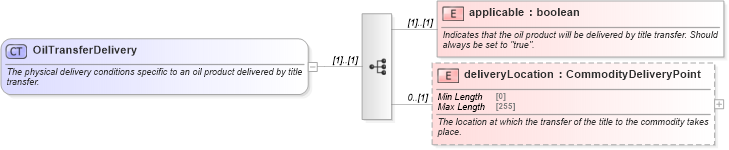

Collapse XSD Schema Diagram:
Drilldown into deliveryLocation in schema fpml-com-5-10_xsd Drilldown into applicable in schema fpml-com-5-10_xsdXSD Diagram of OilTransferDelivery in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="OilTransferDelivery">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical delivery conditions specific to an oil product delivered by title transfer.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="applicable" type="xsd:boolean">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates that the oil product will be delivered by title transfer. Should always be set to "true".</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="deliveryLocation" type="CommodityDeliveryPoint" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The location at which the transfer of the title to the commodity takes place.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
applicable nsA:applicable (1) (1)
deliveryLocation nsA:deliveryLocation 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:transfer
