Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: option
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:ExchangeTradedOption
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
Identifies the underlying asset when it is a listed option contract.

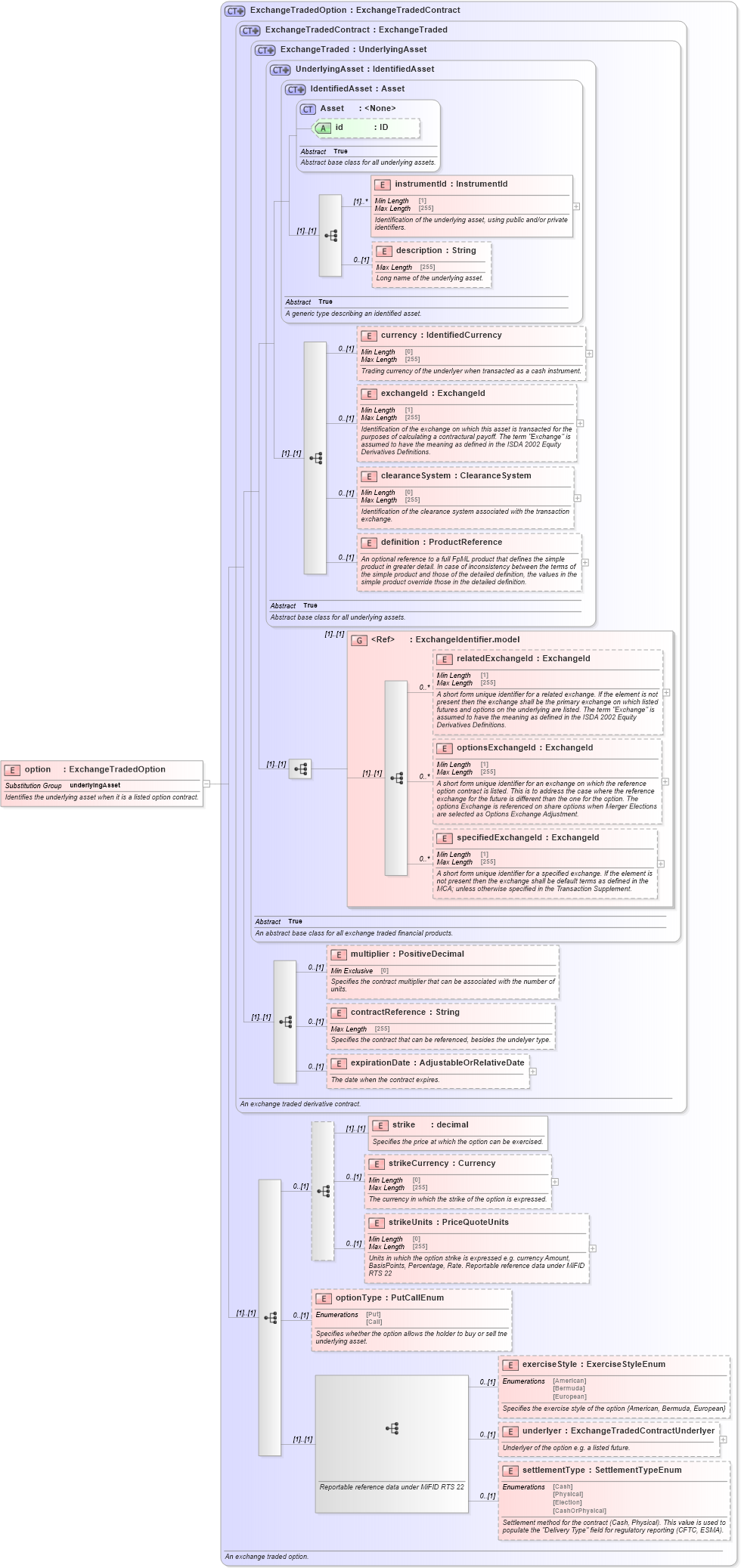

Collapse XSD Schema Diagram:
Drilldown into settlementType in schema fpml-asset-5-10_xsd Drilldown into underlyer in schema fpml-asset-5-10_xsd Drilldown into exerciseStyle in schema fpml-asset-5-10_xsd Drilldown into optionType in schema fpml-asset-5-10_xsd Drilldown into strikeUnits in schema fpml-asset-5-10_xsd Drilldown into strikeCurrency in schema fpml-asset-5-10_xsd Drilldown into strike in schema fpml-asset-5-10_xsd Drilldown into expirationDate in schema fpml-asset-5-10_xsd Drilldown into contractReference in schema fpml-asset-5-10_xsd Drilldown into multiplier in schema fpml-asset-5-10_xsd Drilldown into specifiedExchangeId in schema fpml-asset-5-10_xsd Drilldown into optionsExchangeId in schema fpml-asset-5-10_xsd Drilldown into relatedExchangeId in schema fpml-asset-5-10_xsd Drilldown into ExchangeIdentifier.model in schema fpml-asset-5-10_xsd Drilldown into definition in schema fpml-asset-5-10_xsd Drilldown into clearanceSystem in schema fpml-asset-5-10_xsd Drilldown into exchangeId in schema fpml-asset-5-10_xsd Drilldown into currency in schema fpml-asset-5-10_xsd Drilldown into description in schema fpml-asset-5-10_xsd Drilldown into instrumentId in schema fpml-asset-5-10_xsd Drilldown into id in schema fpml-asset-5-10_xsd Drilldown into Asset in schema fpml-asset-5-10_xsd Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd Drilldown into UnderlyingAsset in schema fpml-asset-5-10_xsd Drilldown into ExchangeTraded in schema fpml-asset-5-10_xsd Drilldown into ExchangeTradedContract in schema fpml-asset-5-10_xsd Drilldown into ExchangeTradedOption in schema fpml-asset-5-10_xsdXSD Diagram of option in schema fpml-asset-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="option" type="ExchangeTradedOption" substitutionGroup="underlyingAsset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Identifies the underlying asset when it is a listed option contract.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
currency nsA:currency 0 (1)
exchangeId nsA:exchangeId 0 (1)
clearanceSystem nsA:clearanceSystem 0 (1)
definition nsA:definition 0 (1)
relatedExchangeId nsA:relatedExchangeId 0 unbounded
optionsExchangeId nsA:optionsExchangeId 0 unbounded
specifiedExchangeId nsA:specifiedExchangeId 0 unbounded
multiplier nsA:multiplier 0 (1)
contractReference nsA:contractReference 0 (1)
expirationDate nsA:expirationDate 0 (1)
strike nsA:strike (1) (1)
strikeCurrency nsA:strikeCurrency 0 (1)
strikeUnits nsA:strikeUnits 0 (1)
optionType nsA:optionType 0 (1)
exerciseStyle nsA:exerciseStyle 0 (1)
underlyer nsA:underlyer 0 (1)
settlementType nsA:settlementType 0 (1)
<xs:group> nsA:ExchangeIdentifier.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:underlyingAsset
